Access Private Kubernetes Clusters with openZro Kubernetes Operator

Accessing private Kubernetes clusters can be challenging, especially when connecting from remote locations or having multiple clusters to manage. openZro Kubernetes operator simplifies this process by enabling secure access to your Kubernetes clusters using custom resource configurations and annotations to expose your cluster and services in your openZro network.

The openZro Kubernetes operator automatically creates Networks and Resources in your openZro deployment, allowing you to seamlessly access your Kubernetes services and control plane from your openZro network.

Deployment

Prerequisites

• (Recommended) helm version 3+
• kubectl version v1.11.3+.
• Access to a Kubernetes v1.11.3+ cluster.
• (Recommended) Cert Manager.

Using Helm

1. Add helm repository.

helm repo add openzro https://openzro.github.io/helms

2. (Recommended) Install cert-manager for k8s API to communicate with the openZro operator.

kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.17.0/cert-manager.yaml

3. Install the Gateway API CRDs.

kubectl apply --server-side -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.5.0/experimental-install.yaml

4. Add openZro API token. You can create a PAT by following the steps here.

kubectl create namespace openzro
kubectl -n openzro create secret generic openzro-mgmt-api-key --from-literal=NB_API_KEY=nbp_iVkOxFHOpx5K3Gc7qMqwCTqBWkHRpH2KunpX

4. (Recommended) Create a values.yaml file, check helm show values openzro/kubernetes-operator for more info.

# by default the managementURL points to the openZro cloud service: https://api.openzro.io:443
# managementURL: "https://openzro.example.io:443"
ingress:
  enabled: true

openzroAPI:
  keyFromSecret:
    name: "openzro-mgmt-api-key"
    key: "NB_API_KEY"

5. Install using helm install:

helm install --create-namespace -f values.yaml -n openzro openzro-operator openzro/kubernetes-operator

6. Check installation

kubectl -n openzro get pods

Output should be similar to:

NAME                                                    READY   STATUS    RESTARTS   AGE
openzro-operator-kubernetes-operator-67769f77db-tmnfn   1/1     Running   0          42m

kubectl -n openzro get services

Output should be similar to:

NAME                                                   TYPE        CLUSTER-IP        EXTERNAL-IP   PORT(S)    AGE
openzro-operator-kubernetes-operator-metrics           ClusterIP   192.168.194.165   <none>        8080/TCP   47m
openzro-operator-kubernetes-operator-webhook-service   ClusterIP   192.168.194.222   <none>        443/TCP    47m

7.(Optional) Install Routing Peer and Policies, create a values.yaml file, check helm show values openzro/openzro-operator-config for more info.

router:
  enabled: true
policies:
  default:
    name: Kubernetes Default Policy
    sourceGroups:
      - All

8. Install using helm install:

helm install -f values.yaml -n openzro openzro-operator-config openzro/openzro-operator-config

Updating or Modifying the Operator Configuration

The configuration or version update of the operator can be done with helm upgrade:

Operator version updates

helm upgrade -f values.yaml -n openzro openzro-operator openzro/kubernetes-operator

Configuration Update

helm upgrade -f values.yaml -n openzro openzro-operator-config openzro/openzro-operator-config

Expose Kubernetes Control Plane to your openZro Network

To access your Kubernetes control plane from a openZro network, you can expose your Kubernetes control plane as a openZro resource by enabling the following option in the openzro-operator-config values:

kubernetesAPI:
  enabled: true

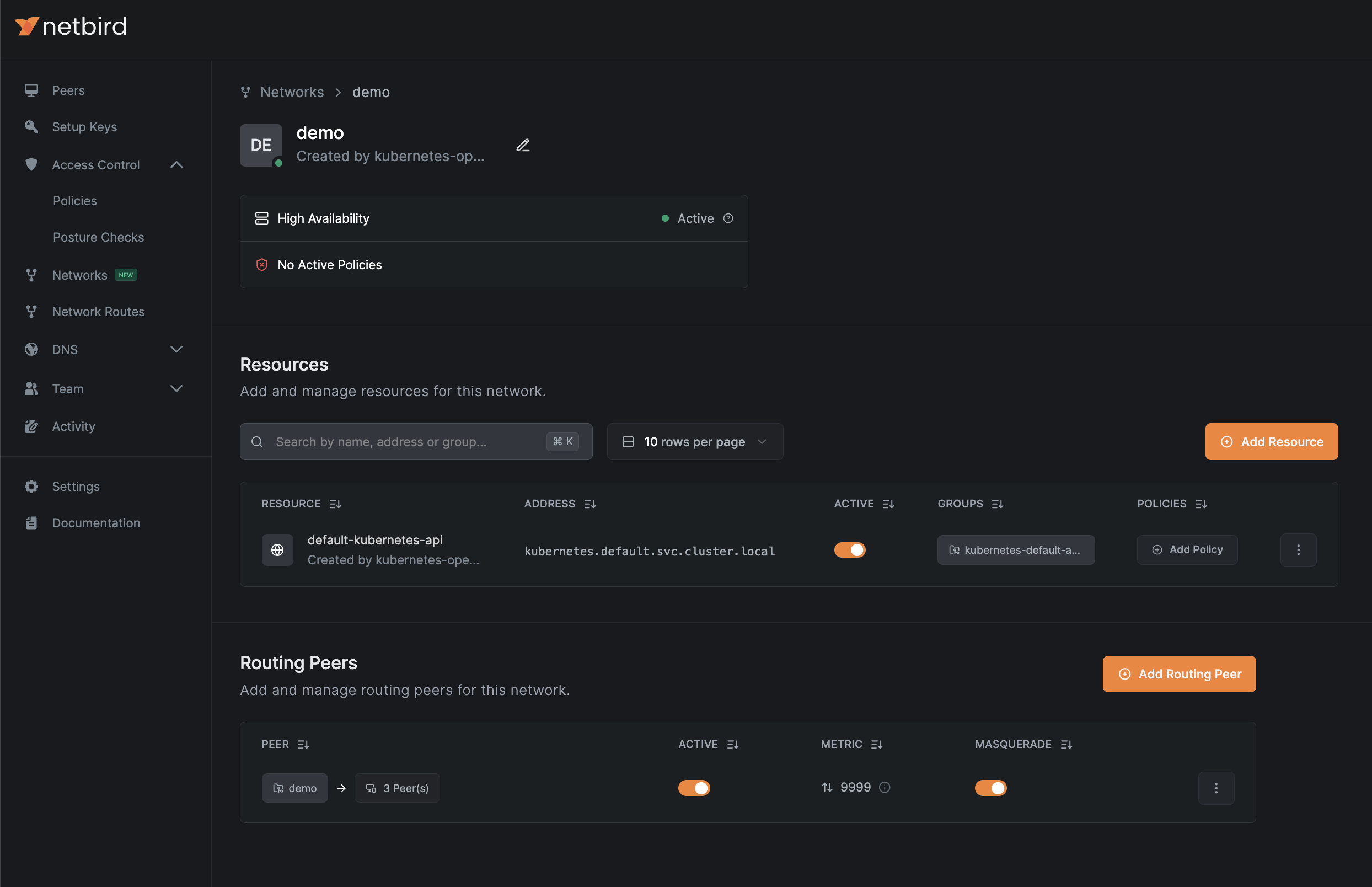

The operator will create a openZro network resource similar to the example below:

Expose Kubernetes Services to openZro Network

Kubernetes services is a common way to route traffic to your application pods. With the openZro operator ingress you can expose services to your openZro network as resources by using annotations in your services. The operator will create networks, resources, and add routing peers to your openZro configuration.

By default, the ingress configuration is disabled. You can enable it with the following values using the openzro-operator-config helm chart:

router:
  enabled: true

You can expose services using the annotations openzro.io/expose: "true" and openzro.io/groups: "resource-group"; see the example below:

apiVersion: v1
kind: Service
metadata:
  name: app
  annotations:
    openzro.io/expose: "true"
    openzro.io/groups: "app-access"
spec:
  selector:
    app: app
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 80
  type: ClusterIP

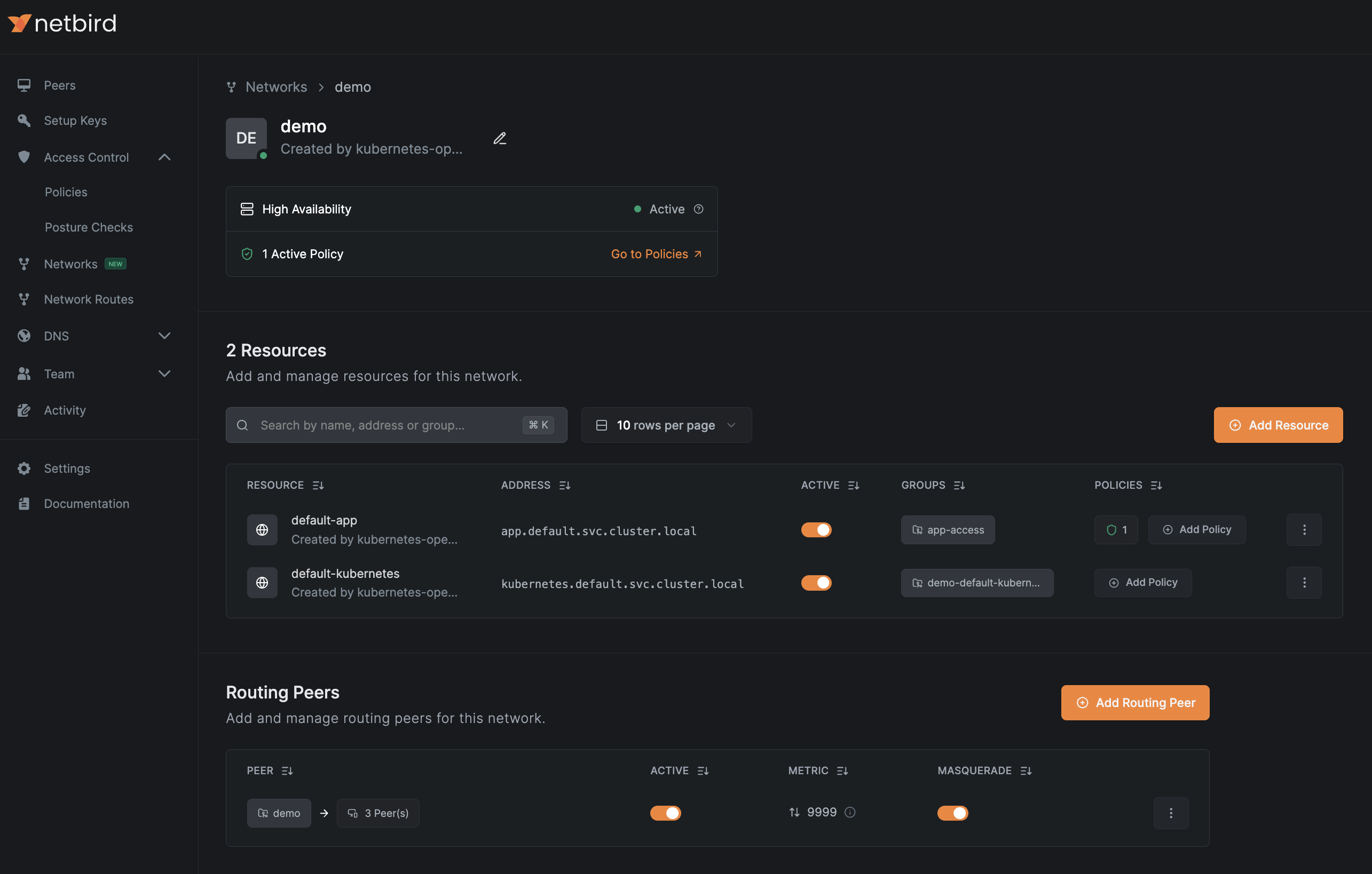

This will create a Network and a resource similar to the example below:

Other annotations can be used to further configure the resources created by the operator:

Control Access to Your Kubernetes Resources with Access Control Policies

By default, resources created by the operator will not have any access control policies assigned to them. To allow the operator to manage your access control policies, configure policy bases in your values.yaml file. In this file, you can define source groups, name suffixes, and other settings related to access control policies. Afterward, you can tag the policies in your service annotations using the annotation openzro.io/policy: "policy-base". See the examples values.yaml for openzro-operator-config below:

router:
  enabled: true
policies:
  app-users:
    name: App users # Required, name of policy in openZro console
    description: Policy for app users access # Optional
    sourceGroups: # Required, name of groups to assign as source in Policy.
      - app-users
    protocols: # Optional, restricts protocols allowed to resources, defaults to ['tcp', 'udp'].
      - tcp
    bidirectional: false
  k8s-admins:
    name: App admins
    sourceGroups:
      - app-admins

After adding the policy base and applying the configuration, you can use the app-users and k8s-admins bases for your services and Kubernetes API configurations.

Linking Policy Bases to the Kubernetes API Service

To link a policy base to the Kubernetes API, we need to update the operator configuration by adding the policy and groups to the kubernetesAPI key in openzro-operator-config as follows:

kubernetesAPI:
  enabled: false
  groups:
    - k8s-access
  policies:
    - k8s-admins

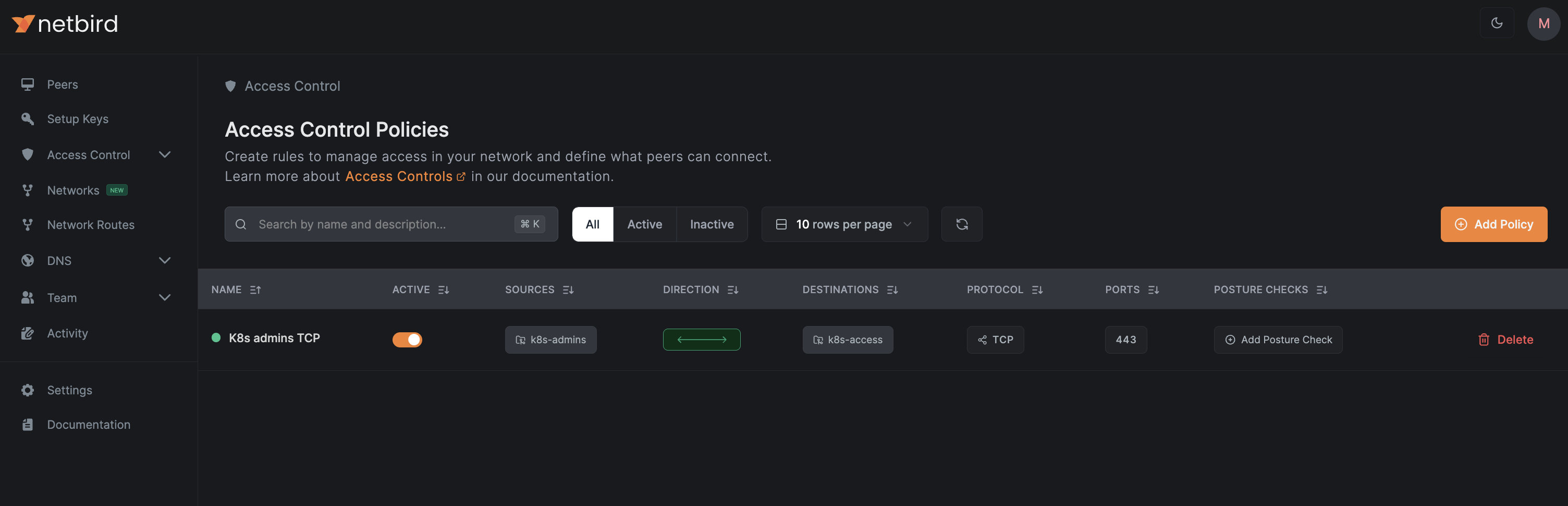

After updating and applying the configuration, you should see a policy similar to the one below:

Linking Policy Bases to Kubernetes Services

You can link policy bases with the annotation openzro.io/policy: where you can simply add one or more bases to the service, see the example below where we link the base "app-users" to our app service:

apiVersion: v1
kind: Service
metadata:
  name: app
  annotations:
    openzro.io/expose: "true"
    openzro.io/groups: "app-access"
    openzro.io/policy: "app-users"
spec:
  selector:
    app: app
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 80
  type: ClusterIP

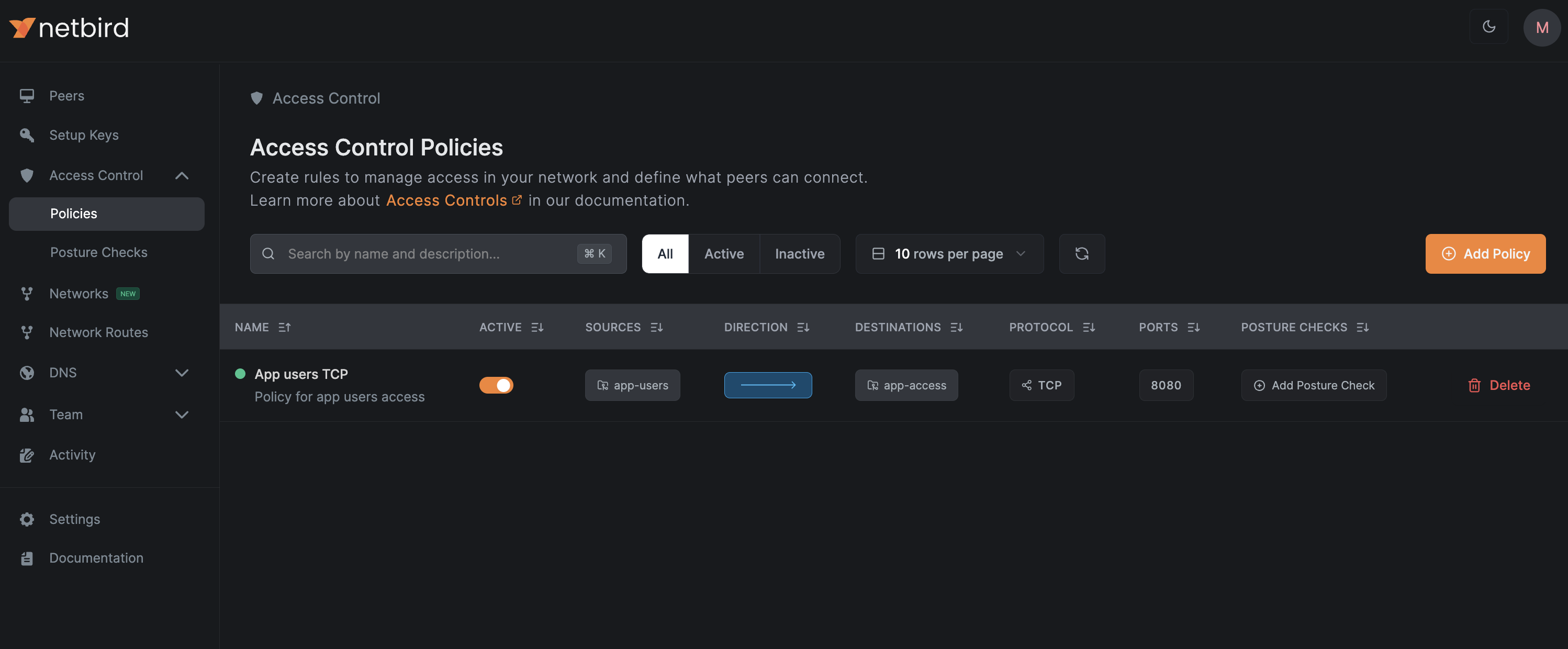

The operator will create a policy in your management account similar to the one below:

You can reference multiple policy bases using a comma separated list of policy bases: openzro.io/policy: "app-users,app-admins"

Policy auto-creation

1. Ensure ingress.allowAutomaticPolicyCreation is set to true in the Helm chart and apply.
2. Annotate a service with openzro.io/policy with the name of the policy as a kubernetes object, for example openzro.io/policy: default. This will create an NBPolicy with the name default-<Service Namespace>-<Service Name>.
3. Annotate the same service with openzro.io/policy-source-groups with a comma-separated list of group names to allow as a source, for example openzro.io/policy-source-groups: dev.
4. (Optional) Annotate the service with openzro.io/policy-name for a human-friendly name, for example openzro.io/policy-name: "default:Default policy for kubernetes cluster". Example:

apiVersion: v1
kind: Service
metadata:
  name: app
  annotations:
    openzro.io/expose: "true"
    openzro.io/groups: "app-access"
    openzro.io/policy: "app-users"
    openzro.io/policy-source-groups: "dev"
    openzro.io/policy-name: "dev:Developers to app"
spec:
  selector:
    app: app
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 80
  type: ClusterIP

Accessing Remote Services Using Sidecars

To access services running in different locations from your Kubernetes clusters, you can deploy openZro sidecars—additional containers that run alongside your Kubernetes service containers within the same pod.

A openZro sidecar joins your network as a regular peer and becomes a subject to access control, routing, and DNS configurations as any other peer in your openZro network. This allows your Kubernetes application traffic to be securely routed through the openZro network, enabling egress-like access to remote services from your Kubernetes services across various locations or cloud providers.

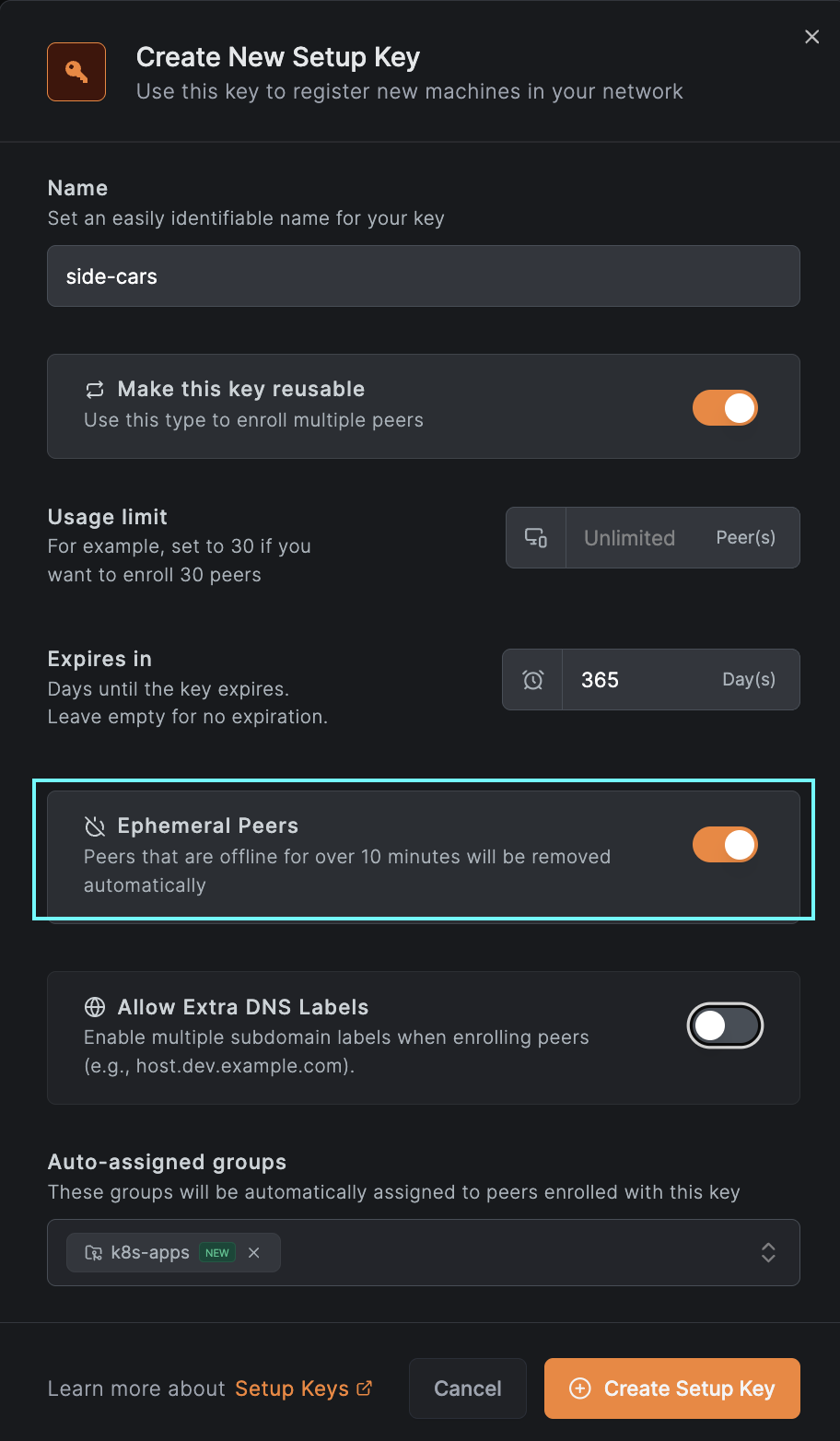

To enable sidecar functionality in your deployments, you first need to generate a setup key, either via the UI (see image below) or by following this guide for more details.

Next, you'll create a secret in Kubernetes and add a new resource called NBSetupKey. The NBSetupKey name can then be referenced in your deployments or daemon sets to specify which setup key should be used when injecting a sidecar into your application pods. Below is an example of a secret and an NBSetupKey resource:

apiVersion: v1
stringData:
  setupkey: EEEEEEEE-EEEE-EEEE-EEEE-EEEEEEEEEEEE
kind: Secret
metadata:
  name: app-setup-key

NBSetupKey:

apiVersion: openzro.io/v1
kind: NBSetupKey
metadata:
  name: app-setup-key
spec:
  # Optional, overrides management URL for this setupkey only
  # defaults to https://api.openzro.io
  # managementURL: https://openzro.example.com
  secretKeyRef:
    name: app-setup-key # Required
    key: setupkey # Required

After adding the resource, you can reference the NBSetupKey in your deployments or daemon-sets as shown below:

kind: Deployment
...
spec:
...
  template:
    metadata:
      annotations:
        openzro.io/setup-key: app-setup-key # Must match the name of an NBSetupKey object in the same namespace
...
    spec:
      containers:
...

Init Sidecar Mode

By default, the openZro container is injected as a regular sidecar container. For workloads like Jobs and CronJobs where the pod should terminate after the main container completes, you can use init sidecar mode. This injects openZro as an init container with restartPolicy: Always.

To enable init sidecar mode, add the following annotation:

openzro.io/init-sidecar: "true"

Below is an example of a Job using init sidecar mode:

kind: Job
...
spec:
...
  template:
    metadata:
      annotations:
        openzro.io/setup-key: app-setup-key # Must match the name of an NBSetupKey object in the same namespace
        openzro.io/init-sidecar: "true"
...
    spec:
      containers:
...

Using Extra Labels to Access Multiple Pods Using the Same Name

Starting with v0.27.0, openZro supports extra DNS labels, allowing you to define extended DNS names for peers. This enables grouping peers under a shared DNS name and distributing traffic using DNS round-robin load balancing.

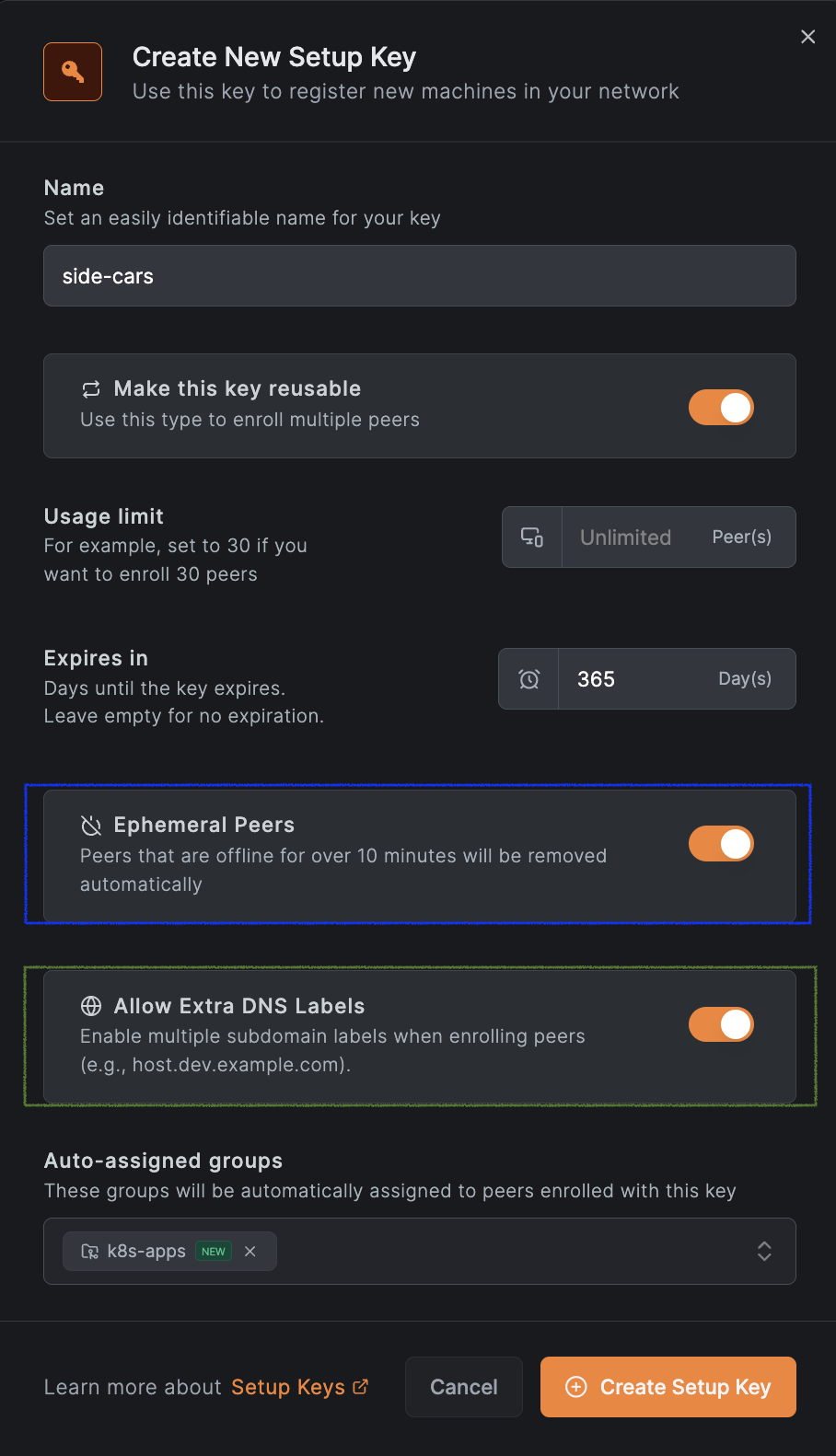

To use this feature, create a setup key with the “Allow Extra DNS Labels” option enabled. See the example below for reference:

And add the annotation openzro.io/extra-dns-labels to your pod; see the example below:

kind: Deployment
...
spec:
...
  template:
    metadata:
      annotations:
        openzro.io/setup-key: app-setup-key # Must match the name of an NBSetupKey object in the same namespace
        openzro.io/extra-dns-labels: "app"
...
    spec:
      containers:
...

With this setup, other peers in your openZro network can reach these pods using the domain app.<OPENZRO_DOMAIN> (e.g., for openZro cloud, app.openzro.cloud). The access will be made using a DNS round-robin fashion for multiple pods.

Uninstallation

v0.2.0+

To uninstall the openZro Kubernetes Operator and its associated resources, you can use the following Helm commands:

helm uninstall -n openzro openzro-operator-config
helm uninstall -n openzro kubernetes-operator

< v0.2.0

To uninstall the openZro Kubernetes Operator and its associated resources, you'll need to manually delete all NBRoutingPeers and NBPolicies created by the operator before uninstalling the Helm chart. You can do this using the following commands:

kubectl -A delete nbroutingpeers --all
kubectl delete nbpolicies --all
helm uninstall -n openzro kubernetes-operator-operator

Upgrade Notes

Upgrading from Helm Chart v0.1.0 to v0.2.0 and above

Starting from version v0.2.0, the openZro Kubernetes Operator Helm chart has been split into two separate charts:

• kubernetes-operator: This chart contains the core operator functionality.
• openzro-operator-config: This chart is responsible for configuring the openZro operator, including routing peers and policies.

The configuration files responsible for creating NBRoutingPeers and NBPolicies have been moved to the openzro-operator-config chart, allowing for easier uninstallation of the operator without affecting existing routing peers and policies, as well as uninstalling configuration with a proper cleanup.

During Helm versions v0.2.x, kubernetes-operator chart will still install NBRoutingPeers and NBPolicies if they are defined in the values.yaml file. However, this behavior will be deprecated in future releases. It is recommended to migrate your configuration to the openzro-operator-config chart to ensure compatibility with future updates.

You can migrate to the new chart by following these steps:

1. Create a new values.yaml file for the openzro-operator-config
2. Move the routing peer and policy configurations from your existing values.yaml file to the new file.
3. Install or upgrade the openzro-operator-config chart using Helm with the new values.yaml file using the --take-ownership flag.

helm install -f values.yaml -n openzro openzro-operator-config openzro/openzro-operator-config --take-ownership

4. Remove routing peer and policy configurations from the kubernetes-operator values.yaml file to avoid duplication.
5. Upgrade the kubernetes-operator chart using Helm with the updated values.yaml file.

helm upgrade -f values.yaml -n openzro openzro-operator openzro/kubernetes-operator
