JumpCloud SSO with openZro Self-Hosted (Legacy)

JumpCloud is a cloud-based directory platform that provides identity, access, and device management. It offers single sign-on (SSO), multi-factor authentication (MFA), and centralized user management.

Standalone Setup (Advanced)

Use JumpCloud as your primary identity provider instead of openZro's embedded IdP. This option gives you full control over authentication and user management, is recommended for experienced JumpCloud administrators as it also requires additional setup and ongoing maintenance.

For most deployments, the embedded IdP is the simpler choice — it's built into openZro, fully integrated, and requires minimal configuration to get started. For this implementation, go back up to the Management Setup (Recommended) section above.

Prerequisites

• JumpCloud account with admin permissions (sign up at https://jumpcloud.com/)
• Docker and Docker Compose for openZro

Step 1: Create and Configure SSO Application

1. Navigate to Admin Portal
2. Click SSO Applications under USER AUTHENTICATION
3. Click Add New Application → Custom Application

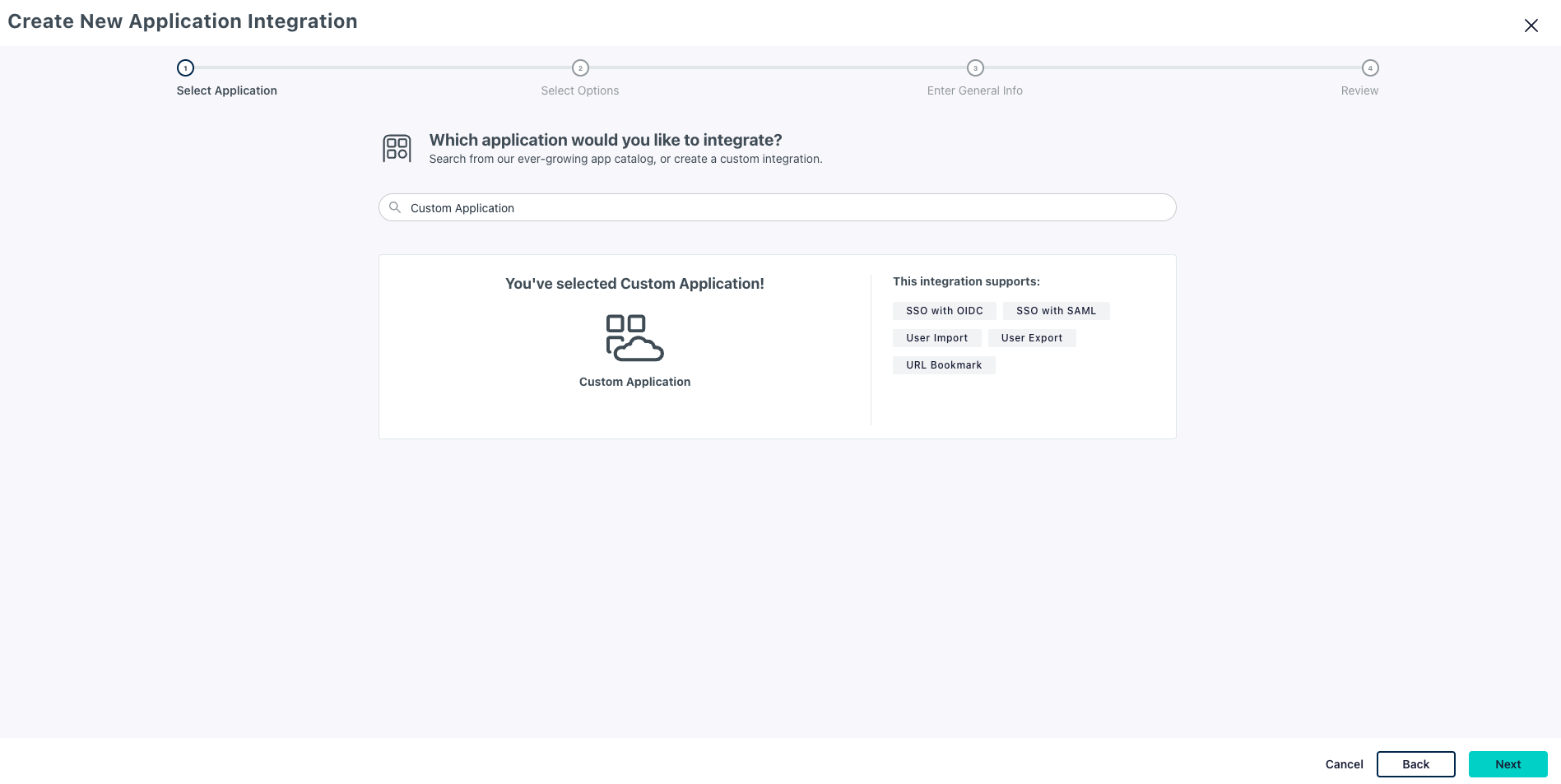

4. Confirm Custom application selected and click Next

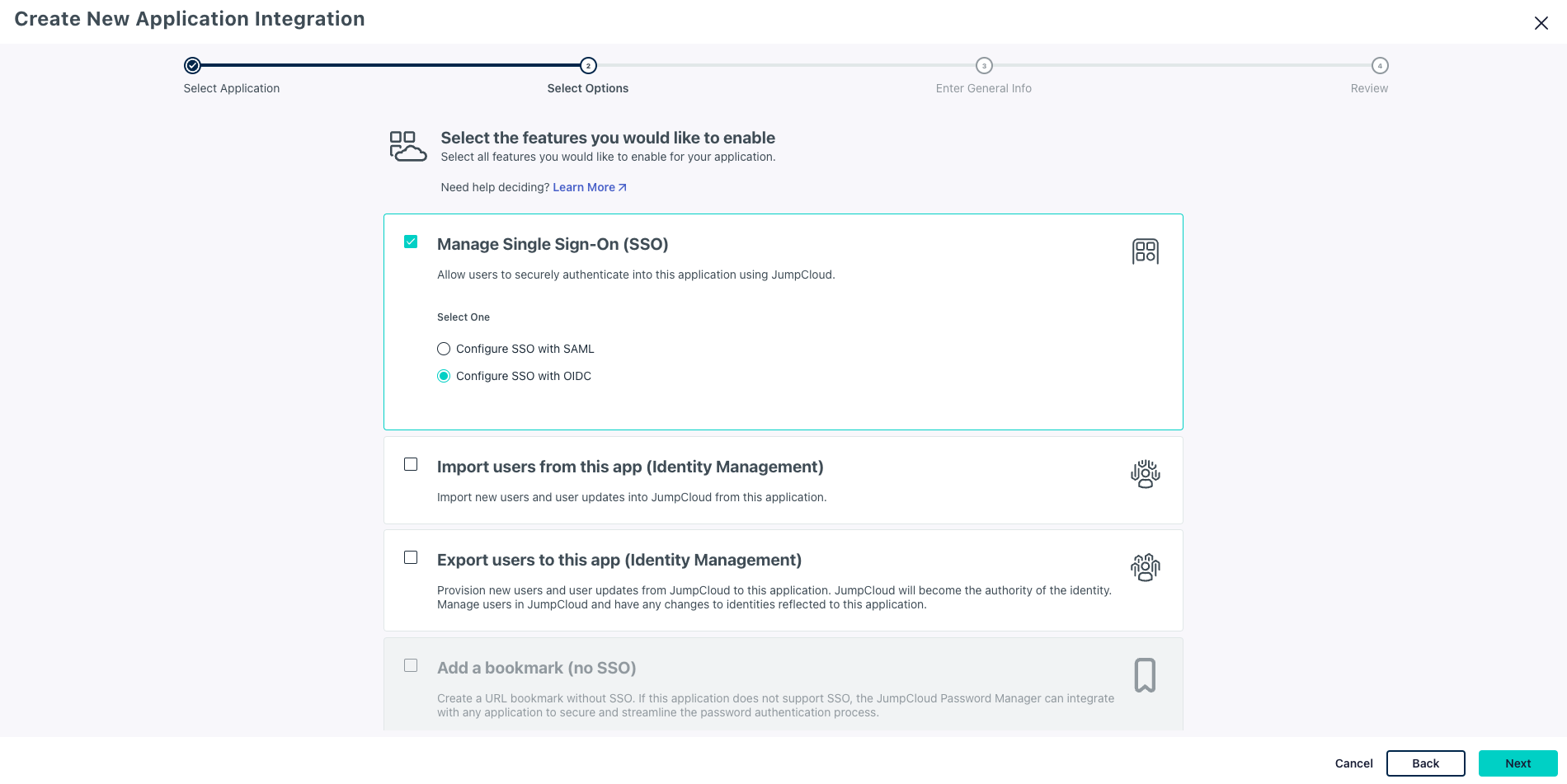

5. Select Manage Single Sign-On (SSO) and check Configure SSO with OIDC
6. Click Next

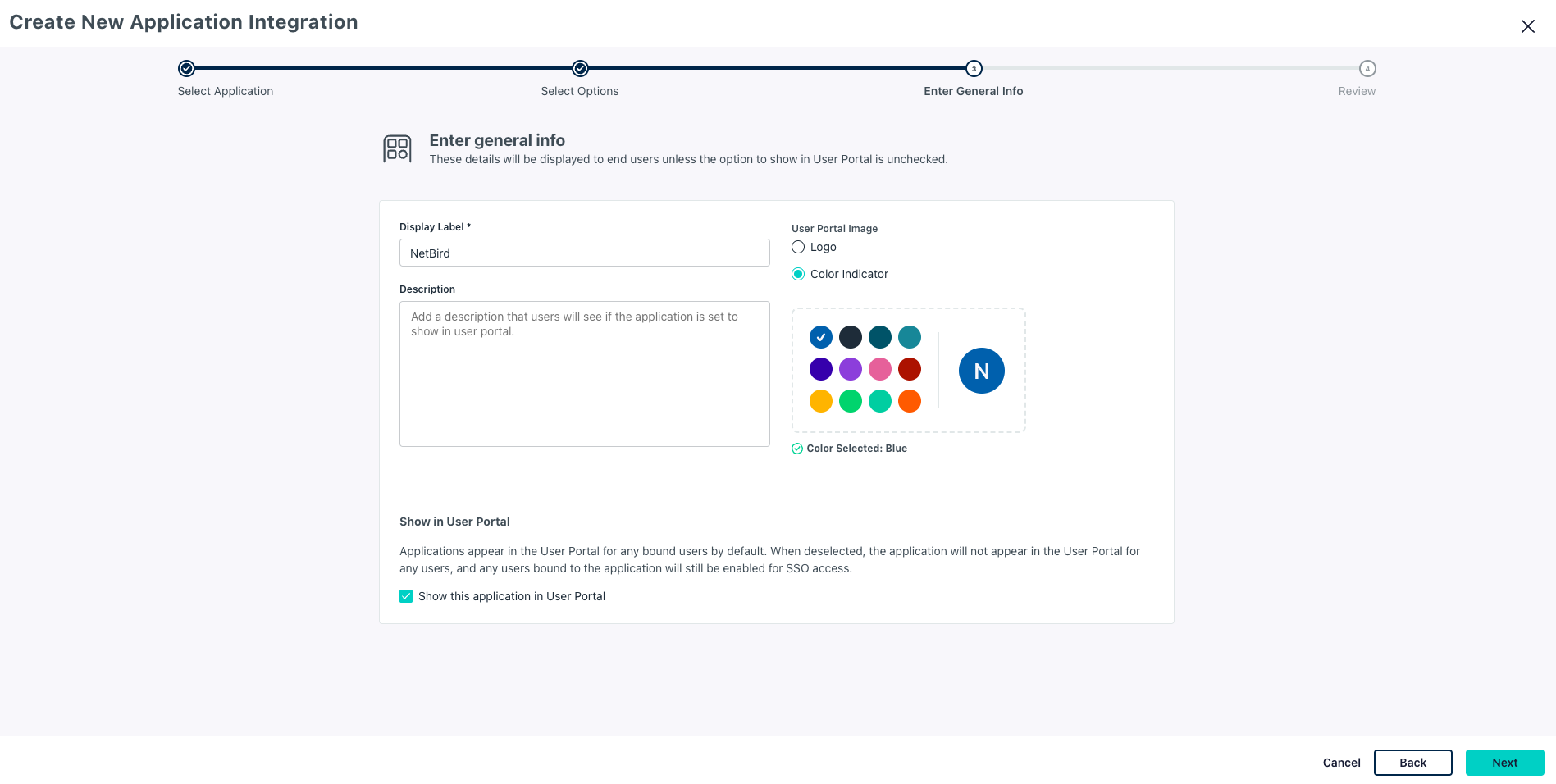

7. Enter Display Label: openZro
8. Click Next

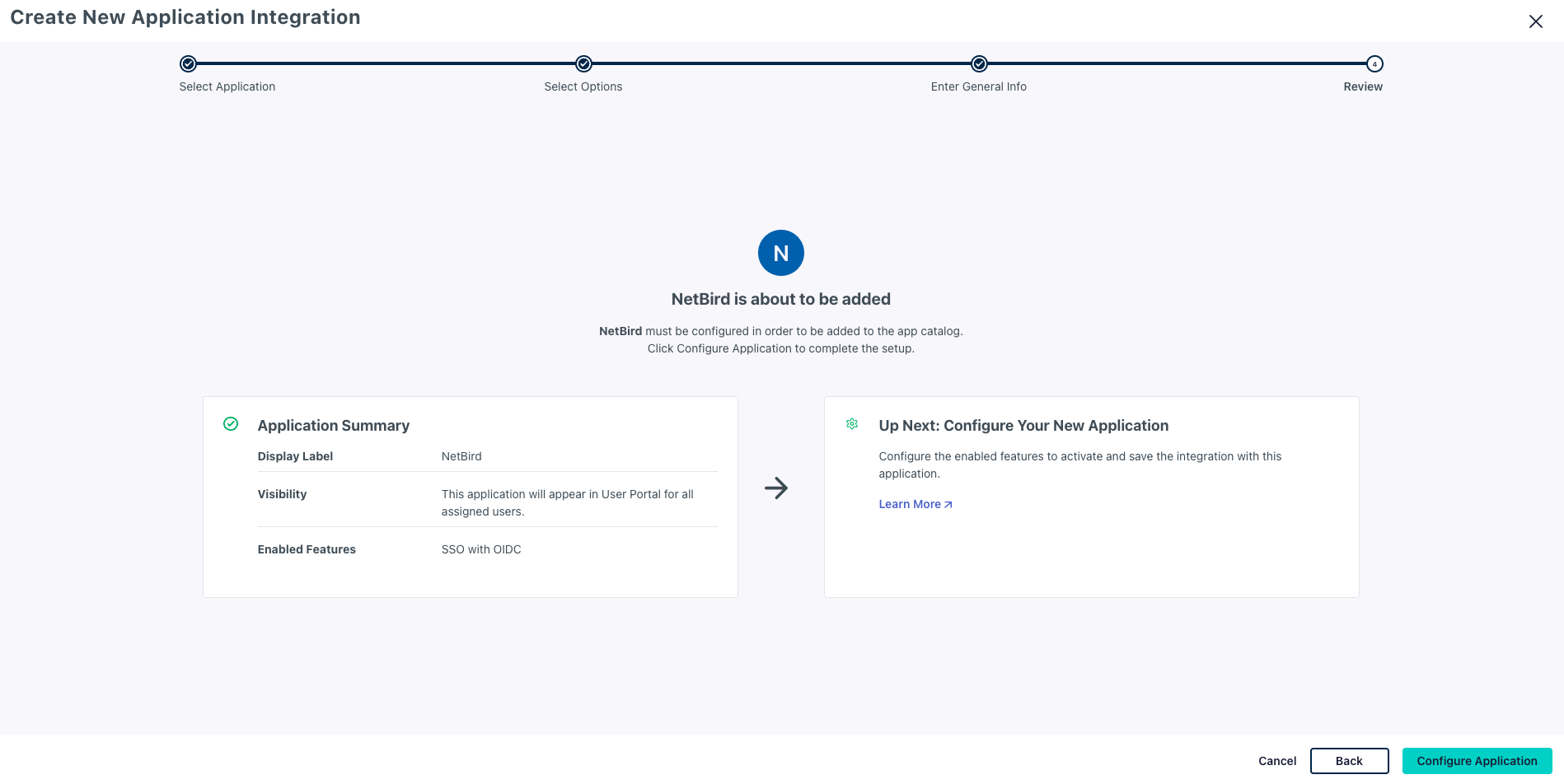

9. Review and click Configure Application

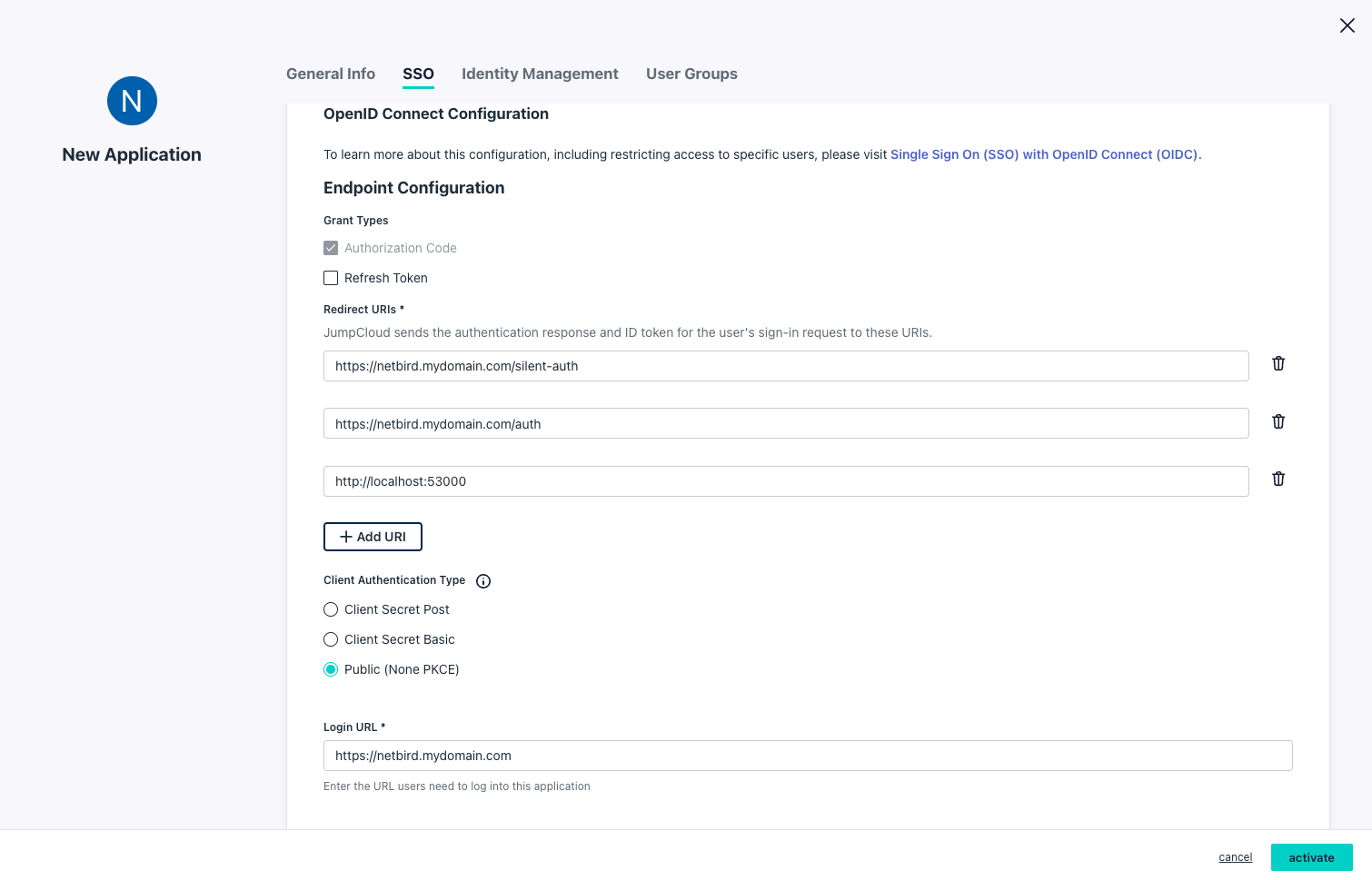

10. On the SSO tab, configure:
    • Redirect URIs:
      • https://<domain>/silent-auth
      • https://<domain>/auth
      • http://localhost:53000
    • Client Authentication Type: Public (None PKCE)
    • Login URL: https://<domain>

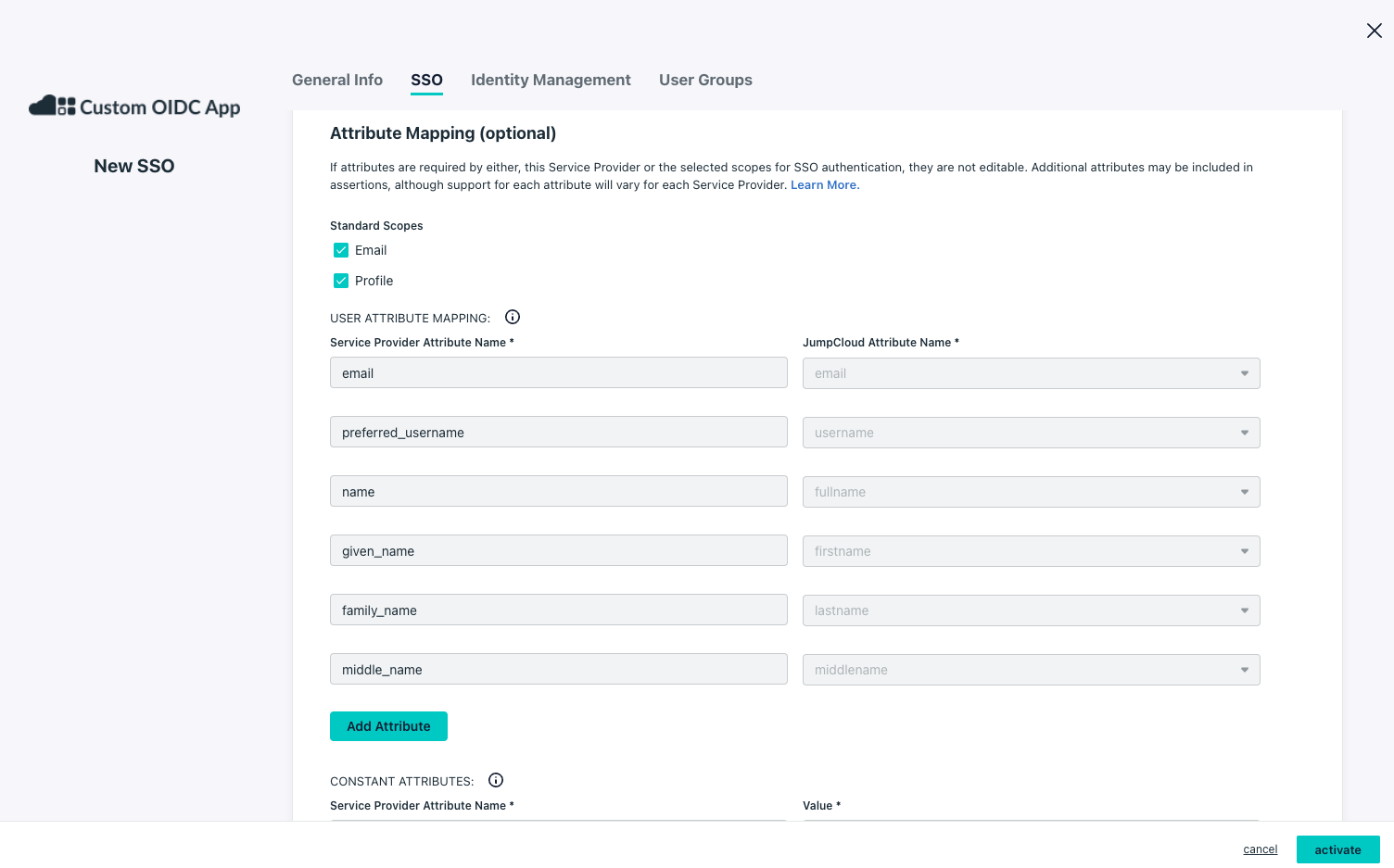

11. Under Attribute Mapping (optional):
    • Standard Scopes: Email, Profile

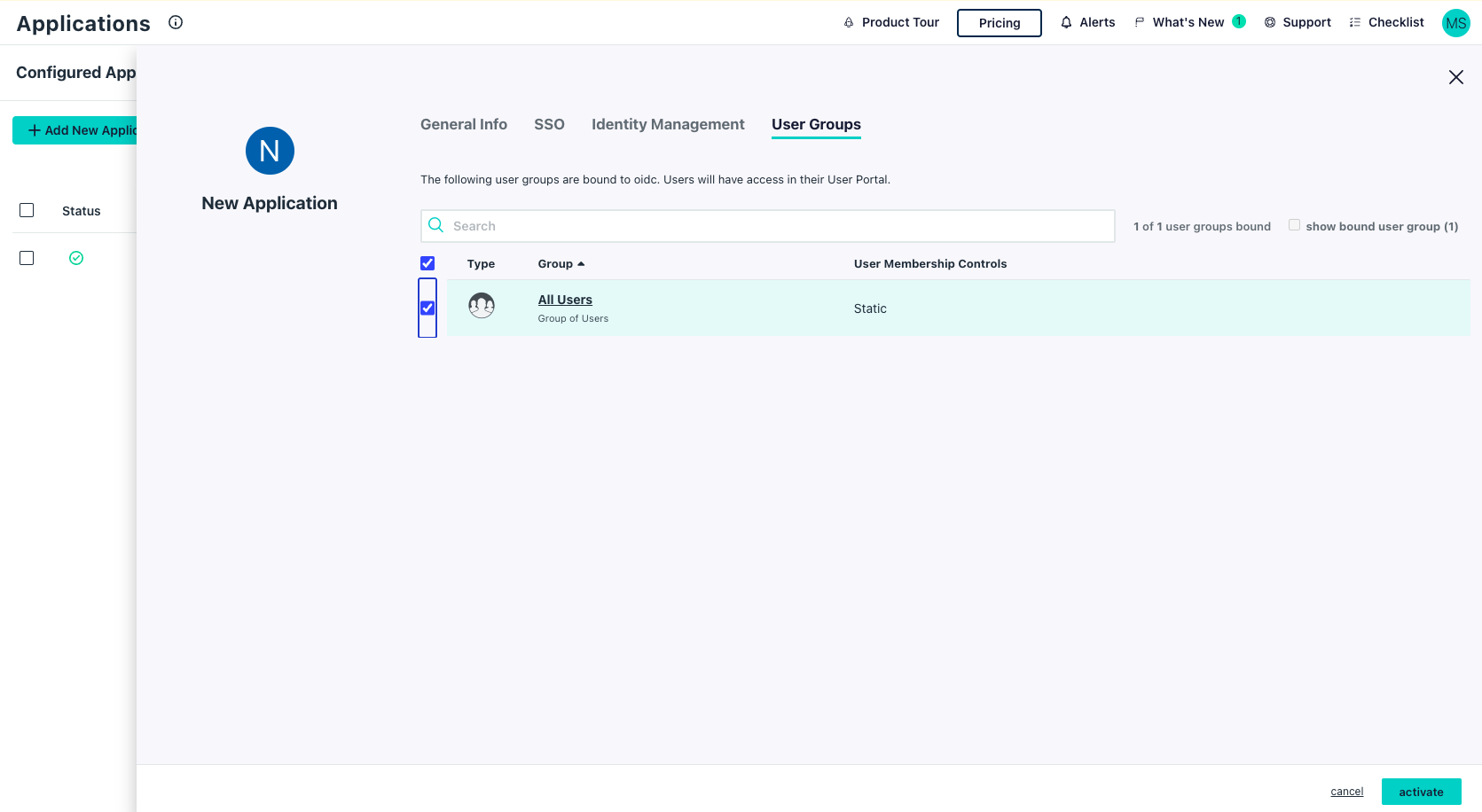

12. Click User Groups tab and select groups that can access the application

13. Click Activate

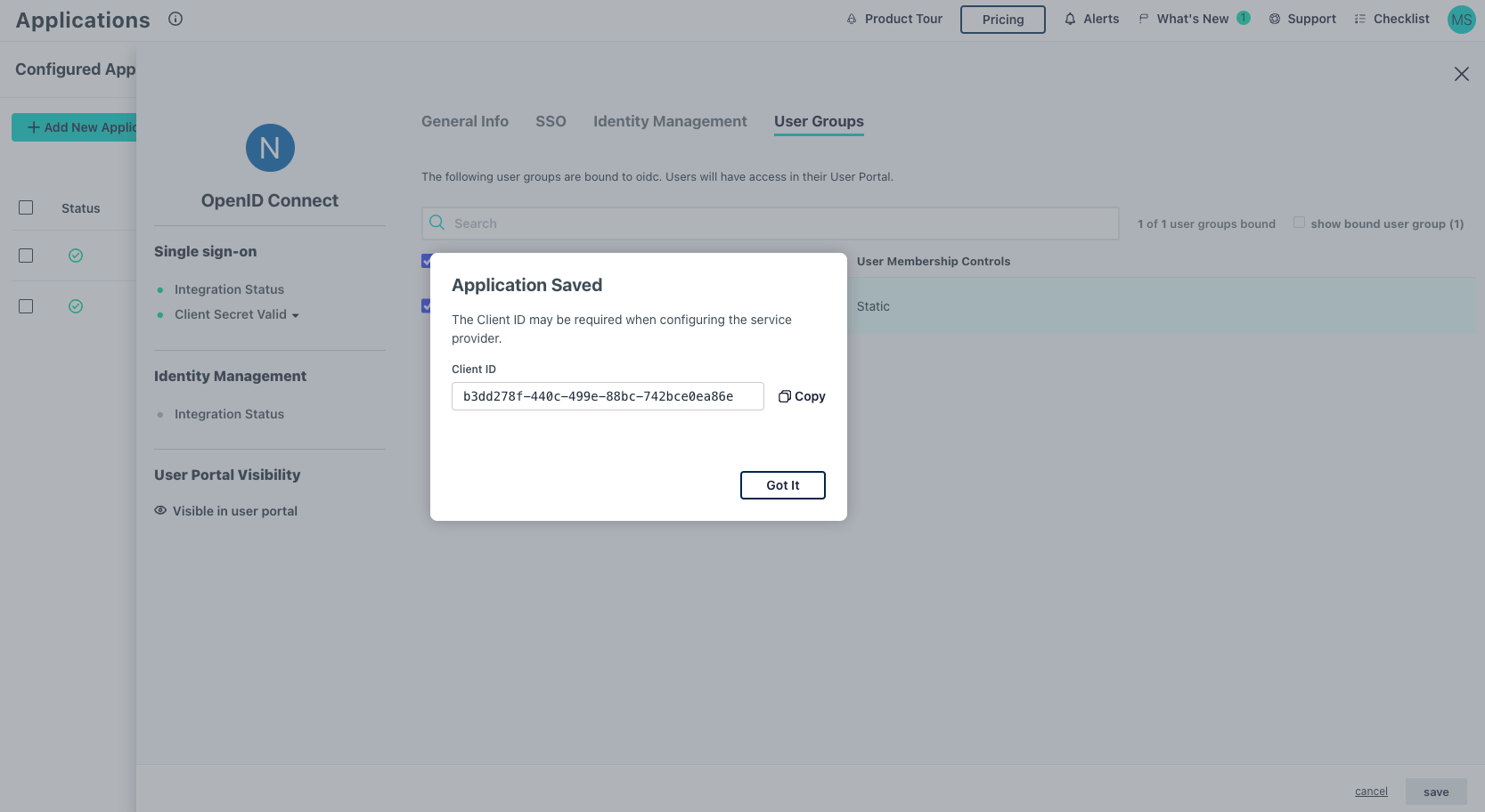

14. Note the Client ID

Step 2: Create Administrator for Integration

The openZro management system requires an API token to get user information from JumpCloud.

1. Navigate to Admin Portal

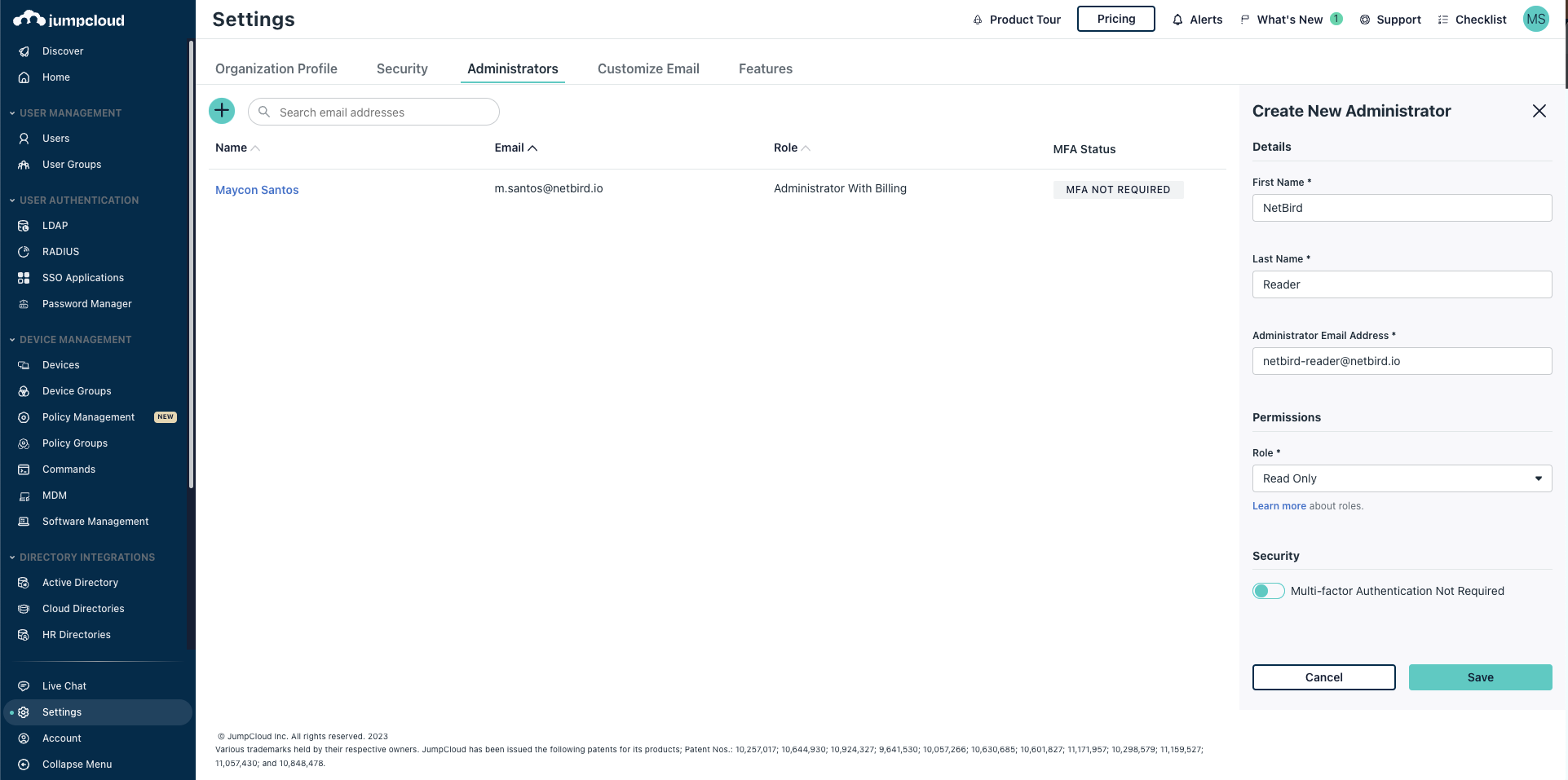

2. Go to Settings and click the add button (+)
3. Fill in:
   • First Name: openZro
   • Last Name: Integration
   • Administrator Email: openzro-user@<yourdomain>
   • Role: Read Only
4. Click Save

5. Check email for login instructions and set a password

Step 3: Generate API Token

1. Log in to Admin Portal with the integration user

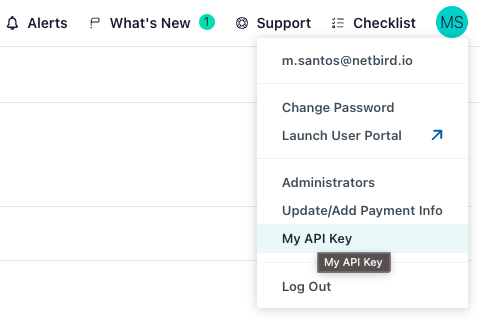

2. Click the account initials (top-right) → My API Key

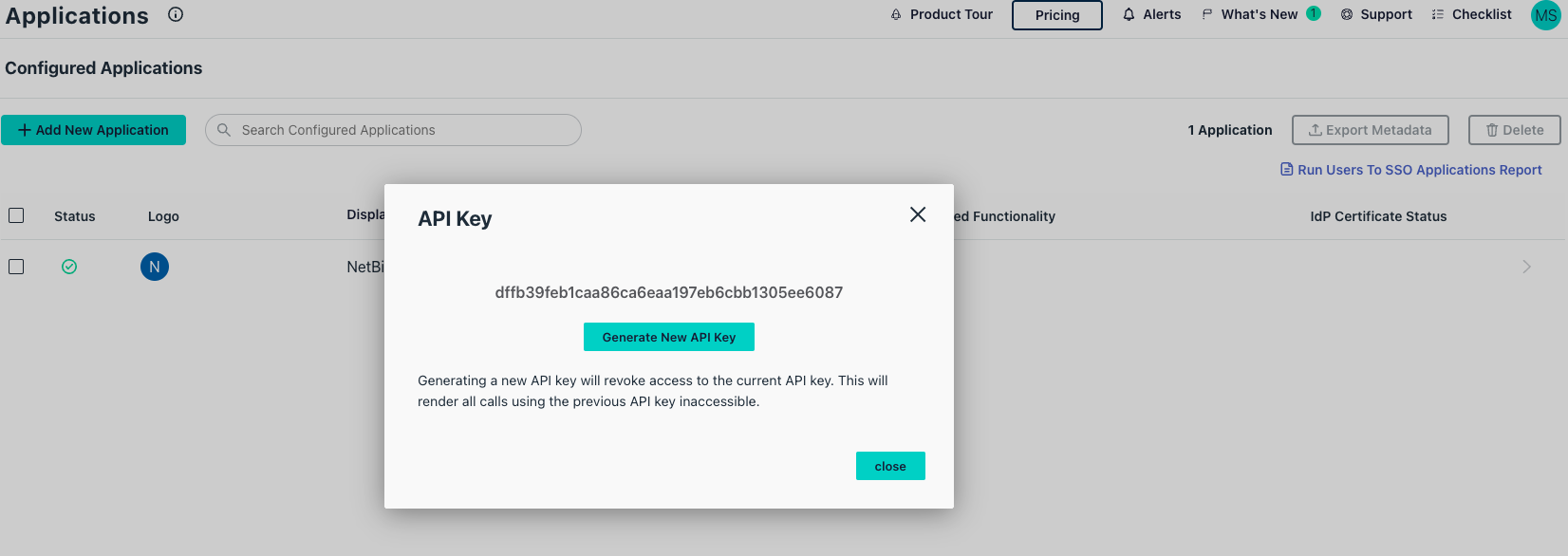

3. If no key exists, click Generate New API Key
4. Copy the API token

Step 4: Configure openZro

Set properties in the setup.env file:

OPENZRO_DOMAIN="<YOUR_DOMAIN>"
OPENZRO_AUTH_OIDC_CONFIGURATION_ENDPOINT="https://oauth.id.jumpcloud.com/.well-known/openid-configuration"
OPENZRO_USE_AUTH0=false
OPENZRO_DASH_AUTH_USE_AUDIENCE=false
OPENZRO_AUTH_AUDIENCE="<CLIENT_ID>"
OPENZRO_AUTH_SUPPORTED_SCOPES="openid profile email offline_access"
OPENZRO_AUTH_CLIENT_ID="<CLIENT_ID>"
OPENZRO_AUTH_REDIRECT_URI="/auth"
OPENZRO_AUTH_SILENT_REDIRECT_URI="/silent-auth"
OPENZRO_TOKEN_SOURCE="idToken"

OPENZRO_AUTH_DEVICE_AUTH_PROVIDER="none"

OPENZRO_MGMT_IDP="jumpcloud"
OPENZRO_IDP_MGMT_EXTRA_API_TOKEN="<API_TOKEN>"

Step 5: Continue with openZro Setup

You've configured all required resources in JumpCloud. Continue with the openZro Self-hosting Guide.

Troubleshooting

"Issuer did not match" or "Unauthenticated" error

If you see an error like:

FATL ... oidc: issuer did not match the issuer returned by provider, expected "https://oauth.id.jumpcloud.com" got "https://oauth.id.jumpcloud.com/"

This means there's a trailing slash mismatch in the Issuer URL. OIDC validation is strictly character-for-character.

The Cause:

• Configured in openZro: https://oauth.id.jumpcloud.com (missing trailing slash)
• Returned by JumpCloud: https://oauth.id.jumpcloud.com/ (has trailing slash)

Because the service fails to initialize the IDP manager, the Management container will often crash or restart loop, making it impossible to fix this via the Web UI.

Resolution:

If you can still access openZro Dashboard:

1. Navigate to Settings → Identity Providers
2. Edit the JumpCloud identity provider
3. Change the Issuer field to exactly https://oauth.id.jumpcloud.com/ (with trailing slash)
4. Click Save
5. Restart the management container: docker restart openzro-management

If you cannot access the dashboard (locked out), you must fix it directly in the SQLite database:

1. Locate the Volume:

   docker volume inspect root_openzro_management
   # Look for "Mountpoint", e.g., /var/lib/docker/volumes/root_openzro_management/_data


   CopyCopied!

2. Access the Database:

   cd /var/lib/docker/volumes/root_openzro_management/_data

   # Backup the database first!
   cp idp.db idp.db.bak

   # Open the database
   sqlite3 idp.db


   CopyCopied!

3. Update the Issuer URL: Inside the SQLite prompt, run the following:

   -- Check current config to confirm missing slash
   SELECT config FROM connector;

   -- Update the config to add trailing slash to match JumpCloud
   UPDATE connector
   SET config = replace(config, 'jumpcloud.com"', 'jumpcloud.com/"')
   WHERE config LIKE '%jumpcloud.com"%';

   -- Verify the change
   SELECT config FROM connector;

   -- Exit
   .quit


   CopyCopied!

4. Restart Service:

   docker restart openzro-management


   CopyCopied!

The service should now start successfully, and the error should be resolved.

"Connector failed to initialize" error

• Ensure Attribute Mapping has both Email and Profile scopes enabled
• Verify at least one User Group is assigned to the application before activation
• Check that Redirect URIs exactly matches the URL from openZro (no trailing slashes)
• Ensure Client Authentication Type is set to Client Secret POST
• Verify Login URL matches your openZro domain exactly
• Make sure the application is Activated and you have the correct Client ID and Client Secret
• Remove any duplicate attributes in Attribute Mapping (e.g., email and email_verified)

"Invalid redirect URI" error

• Ensure all redirect URIs are configured in JumpCloud
• Check for trailing slashes
• Verify URLs match exactly

Users can't access openZro

• Verify the user belongs to an assigned user group
• Check that the user group is assigned to the openZro application

API token not working

• Verify the integration user has appropriate permissions
• Generate a new API token if the current one is invalid

Device authorization not available

• JumpCloud has limited device auth support
• Set OPENZRO_AUTH_DEVICE_AUTH_PROVIDER="none"
