Duo SSO with openZro Self-Hosted

Duo is a cloud-based identity and access management platform by Cisco that provides single sign-on (SSO), multi-factor authentication (MFA), and adaptive access policies. Duo Single Sign-On acts as an OpenID provider (OP), authenticating your users and prompting for two-factor authentication before permitting access.

Management Setup

Add Duo as an external IdP directly in the openZro Management Dashboard. This is the simplest approach and recommended for most deployments.

Prerequisites

• openZro self-hosted with embedded IdP enabled
• Duo account with admin permissions (Duo Premier, Duo Advantage, or Duo Essentials plan)
• Duo Single Sign-On configured with an authentication source

Step 1: Create OIDC Application in Duo

1. Log in to the Duo Admin Panel

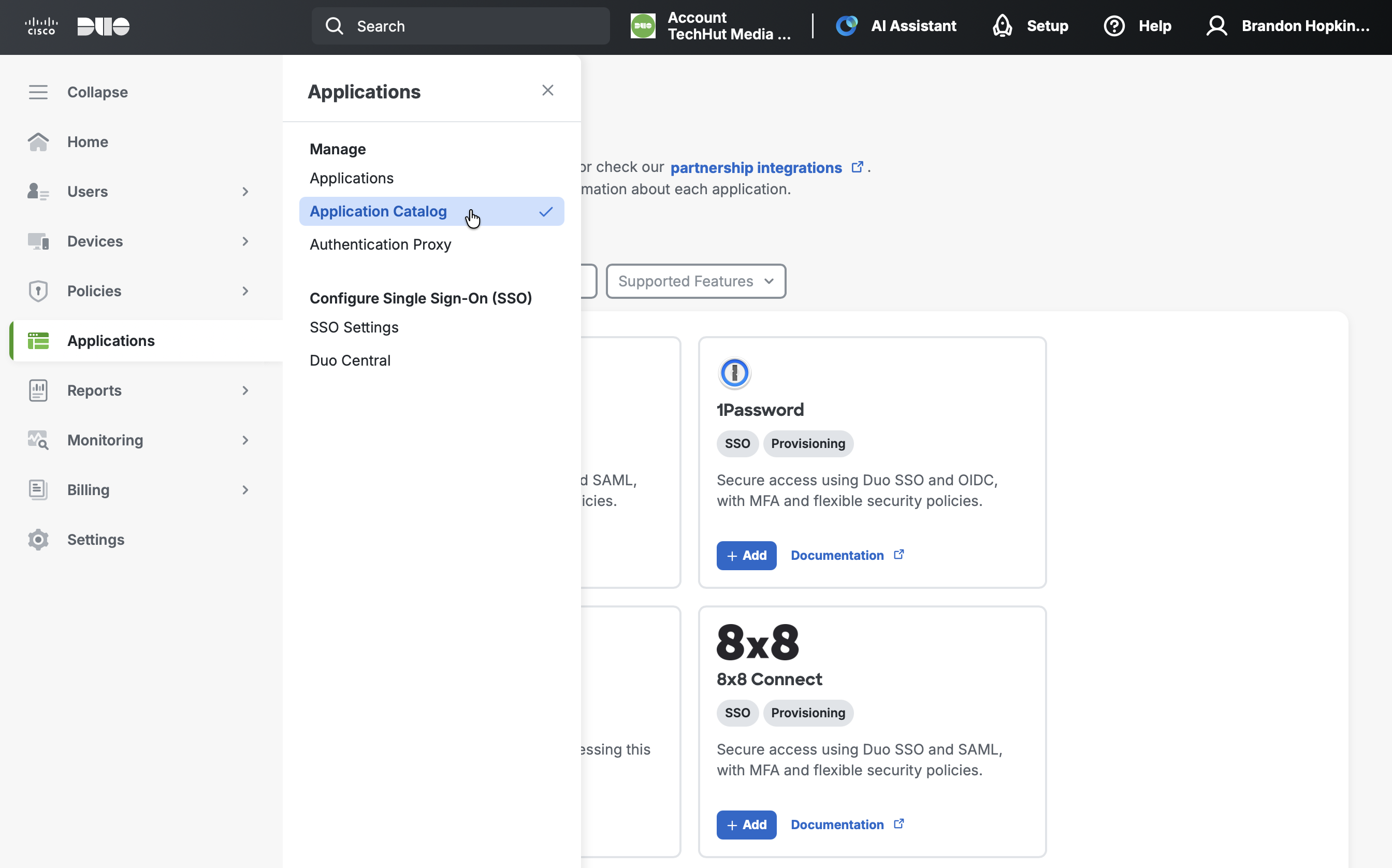

2. Navigate to Applications → Application Catalog

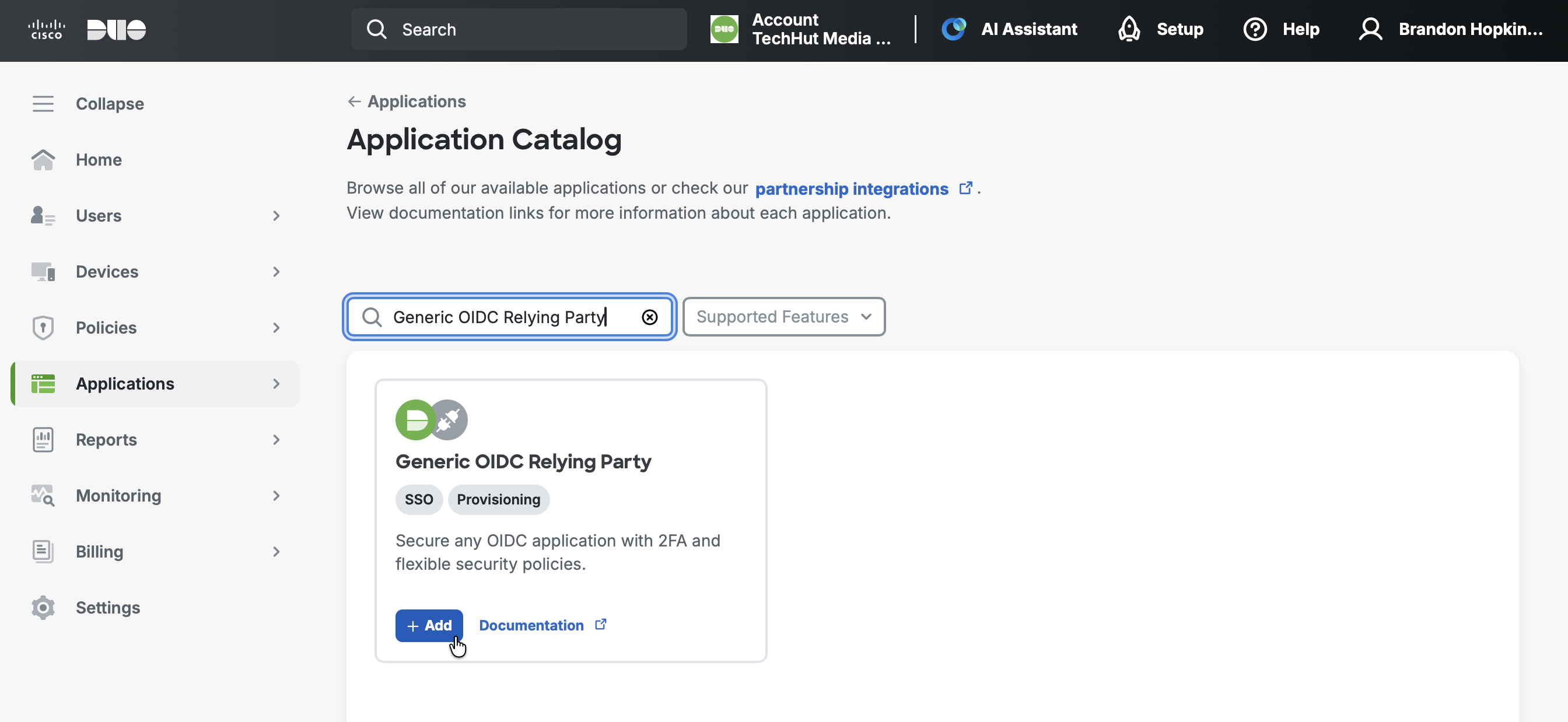

3. Search for Generic OIDC Relying Party (look for the "SSO" label)
4. Click the + Add button

5. Give the application a name such as openZro SSO
6. Under User access, grant access to users in selected Duo groups or to all users

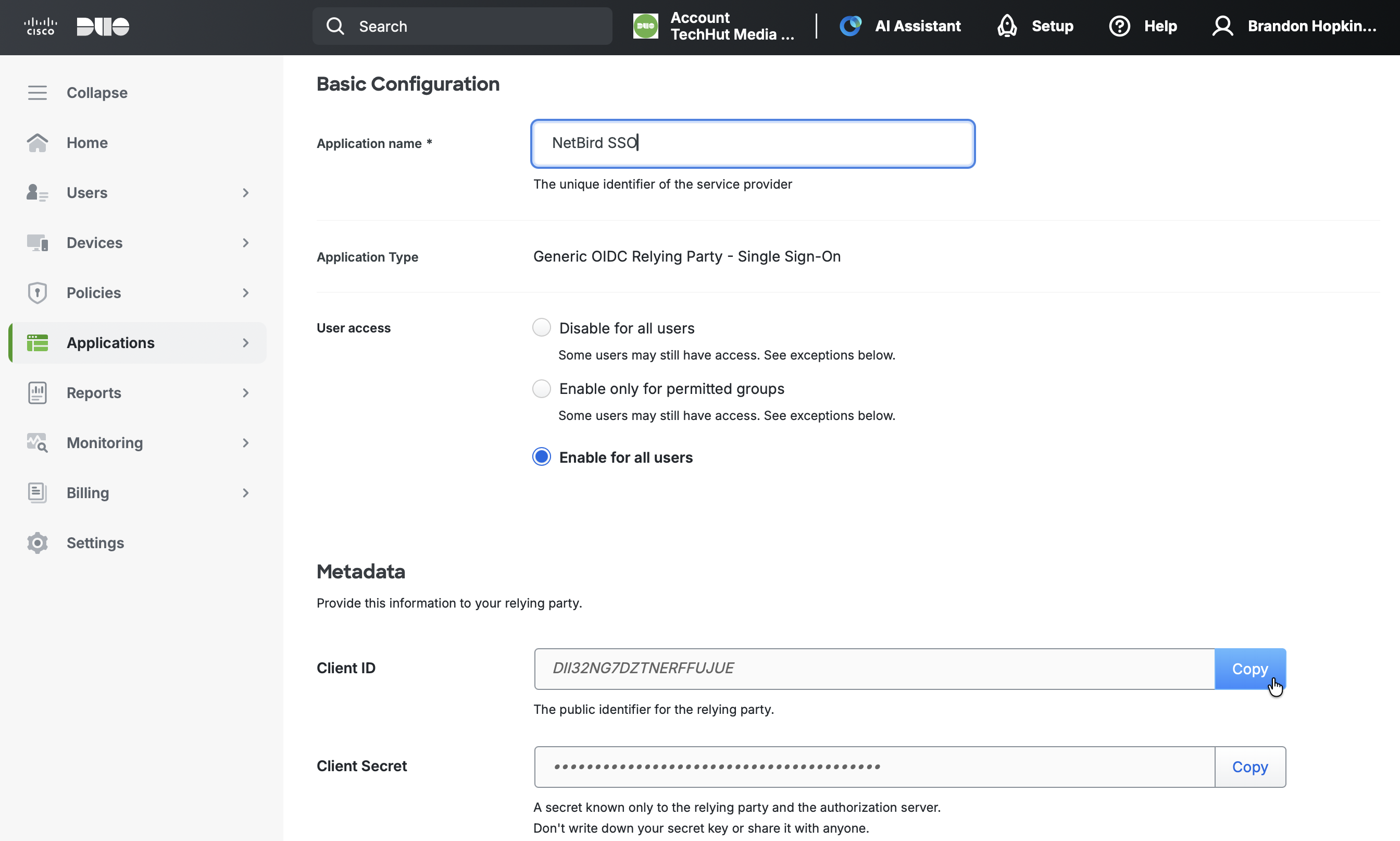

7. Scroll down to the Metadata section and note the following values (you'll need these in Step 3):
   • Client ID
   • Client Secret
   • Issuer

8. Keep this tab open and proceed to Step 2

Step 2: Get Redirect URL from openZro

1. Open a new tab or window and log in to your openZro Dashboard
2. Navigate to Settings → Identity Providers
3. Click Add Identity Provider
4. Fill in the fields:

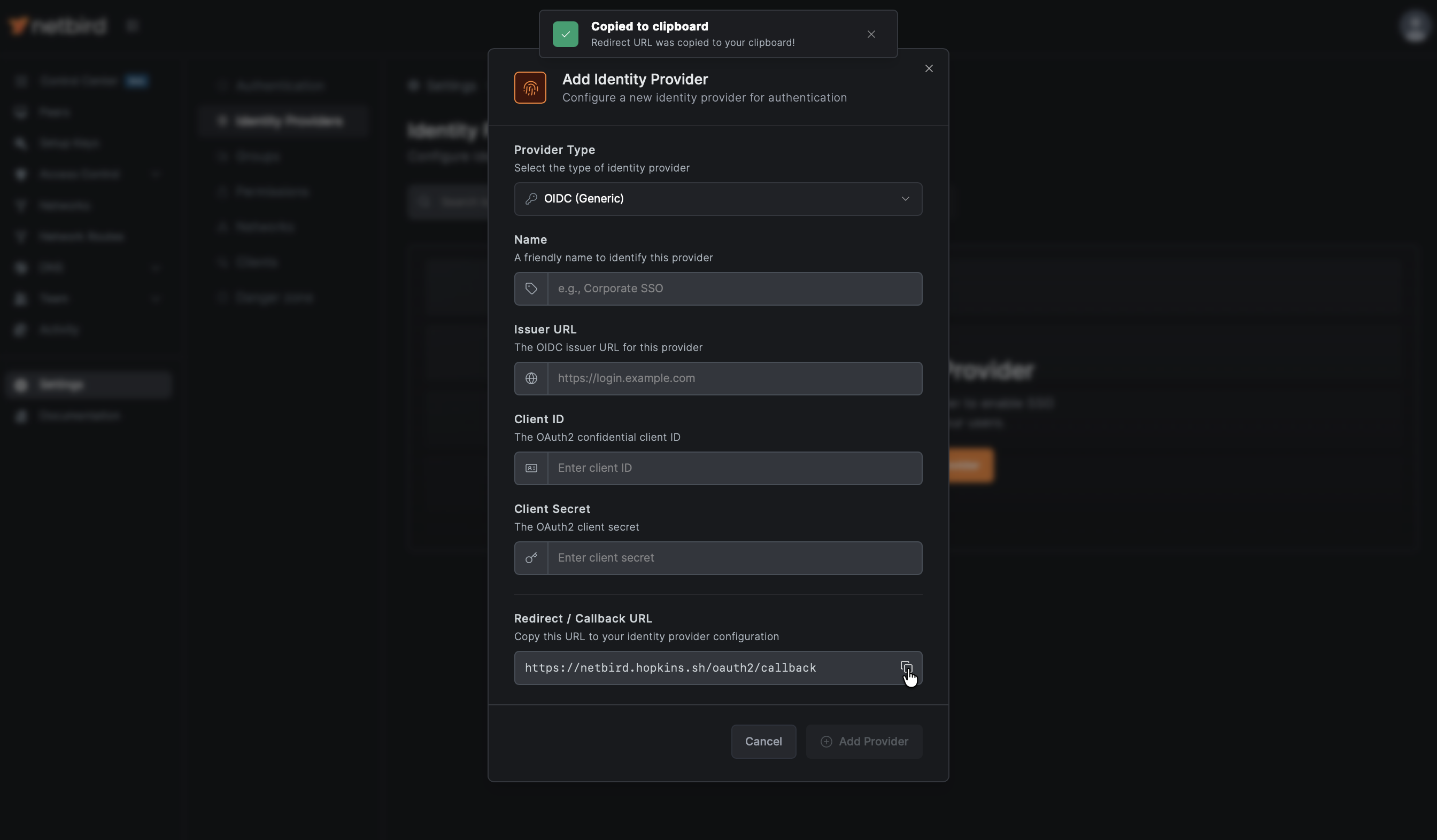

5. Copy the Redirect URL that openZro displays (but don't click Add Provider yet)

Step 3: Complete Duo Application Setup

1. Return to the Duo Admin Panel tab
2. Scroll down to the Relying Party section

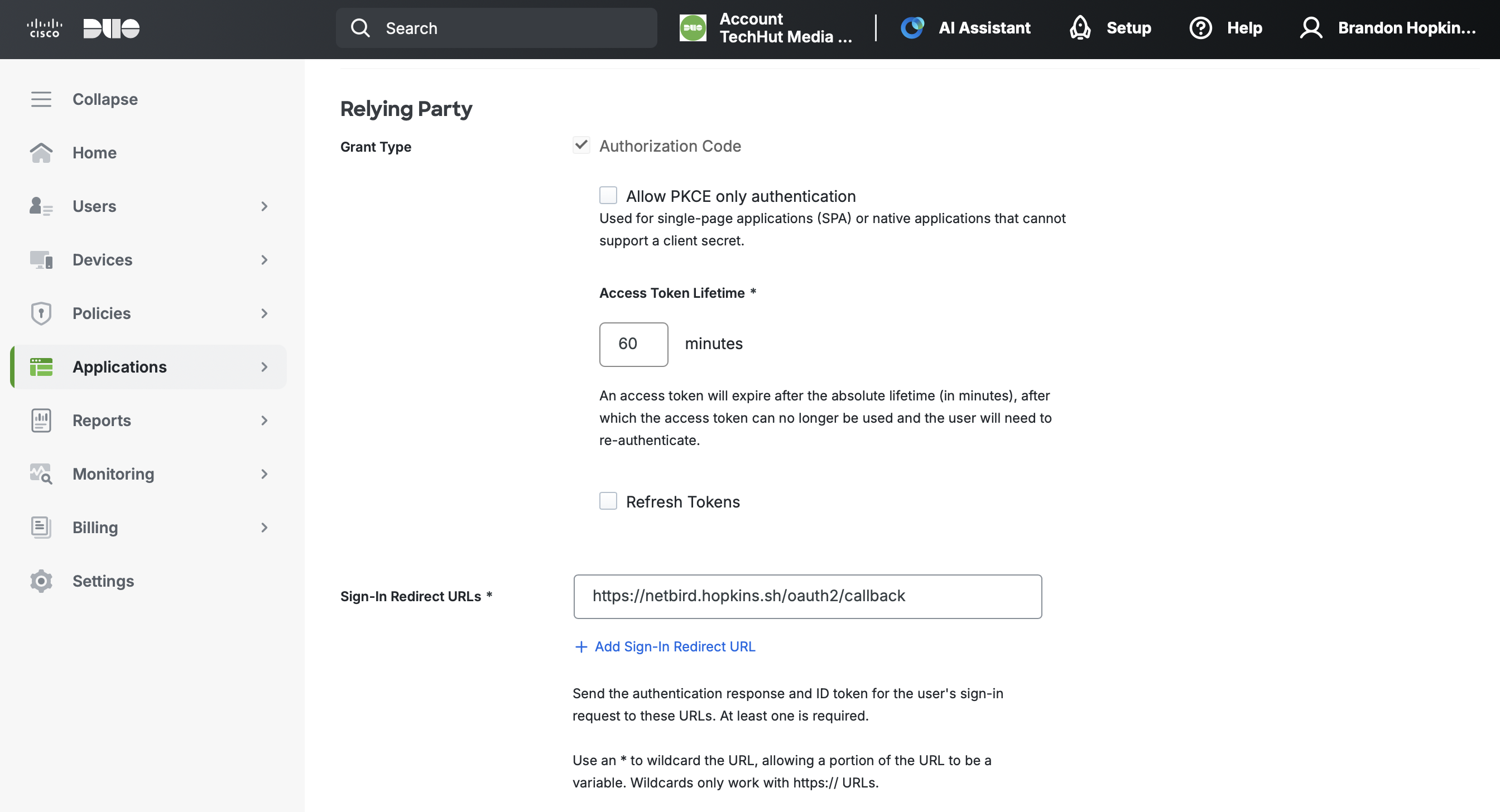

3. Under Sign-In Redirect URLs, enter the redirect URL you copied from openZro (e.g., https://openzro.example.com/oauth2/callback)

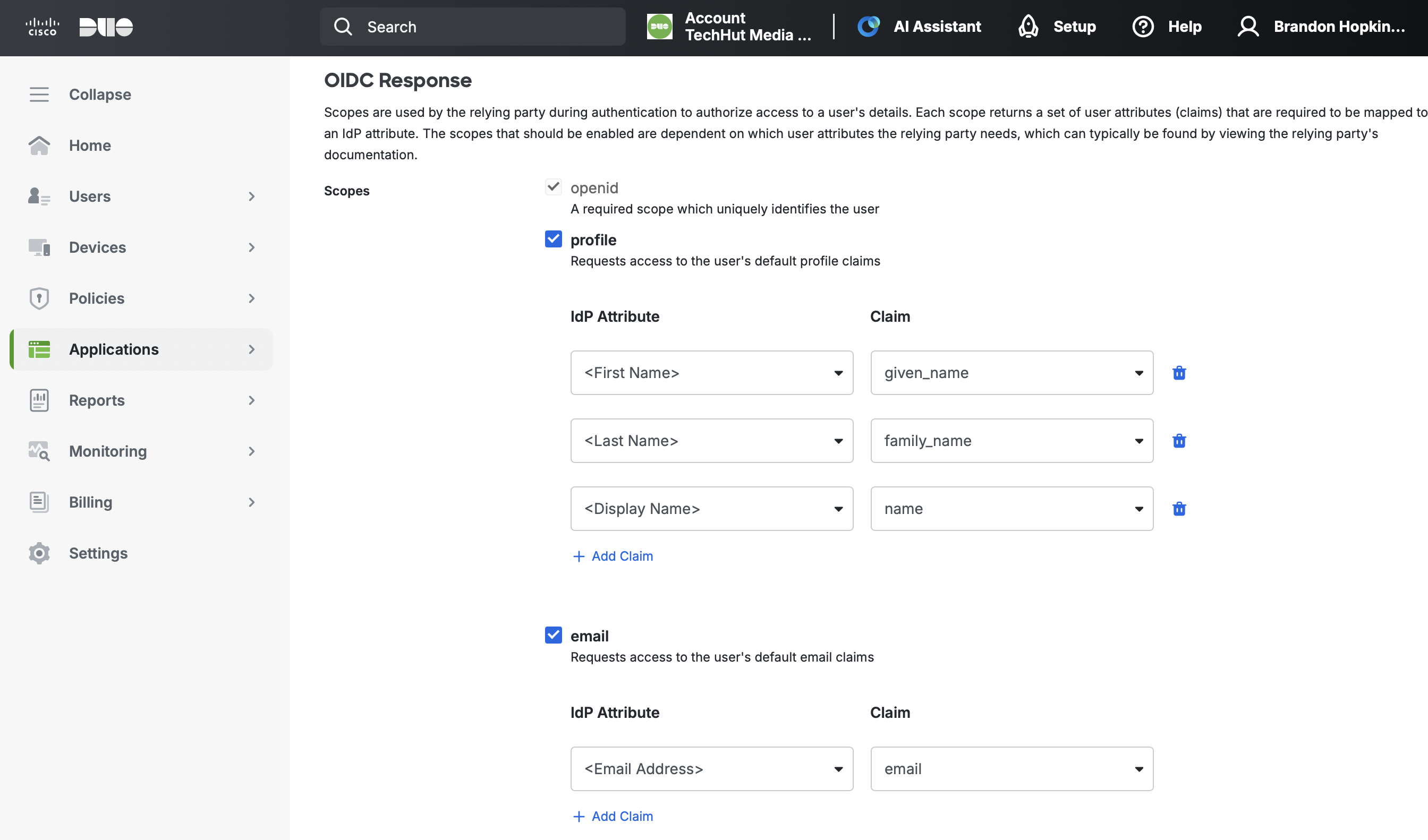

4. Under Scopes, ensure the following are enabled:
   • openid (required, cannot be disabled)
   • profile (check the box)
   • email (check the box)

5. Scroll down and click Save

Step 4: Complete openZro Setup

1. Return to the openZro tab
2. Fill in the Client ID and Client Secret from Duo's Metadata section

3. Click Add Provider

Step 5: Test the Connection

1. Log out of openZro Dashboard
2. On the login page, you should see a "Duo" button
3. Click it and authenticate with your Duo credentials
4. Complete Duo two-factor authentication when prompted
5. You should be redirected back to openZro and logged in. Unless your user approval settings were changed, you will need to log back into your local admin account to approve the user.

Configuring JWT 'groups' Claim

To sync Duo groups with openZro, you need to add a custom scope with group claims in your Duo OIDC application. This will require a custom attribute for the groups.

Step 1: Add Custom Group Scope in Duo

1. In Duo Admin Panel, go to Applications

2. Select your openZro (Generic OIDC Relying Party) application

3. Scroll down to the OIDC Response section

4. Click Add Custom Scope

5. Enter the scope name: groups

6. Click Add Claim under the new scope

7. Configure the claim:

   • IdP Attribute: Select or enter your group attribute from your authentication source
   • Claim: groups

8. Click Save

Step 2: Enable JWT Group Sync in openZro

1. In openZro Dashboard, go to Settings → Groups
2. Enable JWT group sync
3. Set JWT claim to groups
4. Optionally configure JWT allow groups to restrict access

Troubleshooting

"Connector failed to initialize" error

• Ensure the Issuer URL is copied exactly from Duo's Metadata section
• Verify both profile and email scopes are enabled in Duo
• Check that the Redirect URL in Duo exactly matches the URL from openZro
• Make sure the application is saved and you have the correct Client ID and Client Secret
• Confirm your Duo authentication source is properly configured

"Invalid redirect URI" error

• Ensure the redirect URI is configured in Duo's Sign-In Redirect URLs
• Check for trailing slashes — the URL must match exactly
• Verify URLs use HTTPS

Users can't complete authentication

• Verify users have access to the application in Duo (check User access settings)
• Ensure users are enrolled in Duo MFA
• Check that users belong to a group with access to the application

Two-factor authentication issues

• Duo requires MFA for all SSO logins — ensure users have set up their Duo authentication methods
• Check Duo's authentication policy settings for your application
• Verify the user's device is registered in Duo

Groups not syncing

• Verify the custom groups scope is configured with the correct claim
• Check that your authentication source (AD or SAML IdP) is sending group information
• For Active Directory, ensure the group attribute is properly mapped
