Implementing Zero Trust with openZro

This guide shows how to implement a practical Zero Trust Architecture (ZTA) with openZro, aligned with NIST SP 800-207. The focus is on protecting resources (applications, services, data) rather than network segments. For comprehensive ZTA guidance including data-level security, federated identity, and service-to-service access patterns, see NIST SP 1800-35.

0. Prerequisites

Before you start planning or changing policies, confirm the basics.

0.1 Required openZro plan and features

This guide uses features from both the Team and Business plans. Check that your deployment includes what you need.

Team plan

• User and group provisioning from IdP (Identity Provider) for automatic group sync
• Audit event logging for policy and configuration change history

Business plan

• Device posture checks for limiting user access based on OS, client version, geolocation, CIDR, and processes (see Section 4.2 and the Posture Checks guide)
• Connection traffic event logging (Beta, requires client v0.39+) for flow visibility (see Section 7 and Traffic Events)
• Audit and traffic event streaming to Datadog, S3, Firehose, or generic HTTP for SIEM (Security Information and Event Management) integration (see Section 7 and Event Streaming)

Available in all plans (including Free)

• Access Control policies and groups
• Networks and routing peers
• Private DNS
• Control Center topology view

If you self-host, ensure that Management (the central coordination and authentication service), Signal (the signaling service for peer connection negotiation), and Relay (the traffic relay used when direct connections fail) are running supported versions (preferably the latest) for these features.

0.2 Firewall rules for openZro traffic

openZro peers do not need inbound ports open. They initiate outbound connections to openZro's Management, Signal, and Relay services (as well as other peers) over HTTPS (TCP port 443) and UDP/STUN/TURN protocols. If your network firewall restricts outbound traffic (egress filtering), you must allow these specific endpoints and ports.

Understanding the services:

• Management service: The central coordination plane that manages peer authentication, access policies, and configuration
• Signal service: Coordinates peer-to-peer connections and helps peers discover each other
• Relay service: Provides fallback connections when direct peer-to-peer connections cannot be established (e.g., behind restrictive NATs)

Understanding the protocols:

• HTTPS (TCP/443): Secure web protocol used for control plane communication
• STUN/TURN (UDP): Protocols used for NAT traversal, helping peers connect through firewalls and routers

1. Terminology and naming

This section defines how terms are used in this guide and in openZro.

1.1 Core openZro terms

• Peer

  A device running the openZro client. Each peer has an overlay IP address and can belong to one or more groups.

• Routing peer

  A openZro peer that acts as a gateway, forwarding traffic between the openZro overlay network and one or more internal subnets (private network ranges). Routing peers typically run in a VPC (Virtual Private Cloud, such as AWS VPC or Azure VNet), data center, or office LAN (Local Area Network). Think of it as a bridge between openZro's virtual network and your physical or internal networks.

• Overlay network and overlay IP

  The overlay network is a virtual network that openZro creates on top of your existing infrastructure (a "network on top of a network"). For each openZro tenant, the overlay is a random /16 CIDR block within the 100.64.0.0/10 range (a private IP range reserved for carrier-grade NAT). Each peer receives an overlay IP address from this /16 range for communication with other peers. Internal networks never see WireGuard encryption keys or tunnels directly. They only see overlay IPs or the routing peer's IP address, depending on whether masquerading is enabled (see Section 6.2).

• Network (openZro object)

  A openZro configuration object that maps your internal networks (such as VPCs, LANs, or office networks) and organizes routing peers and resources. Networks group routing peers that provide access to the same internal subnets. Resources within Networks (IP addresses, ranges, or DNS names) serve as destinations in access policies. Networks replaced the older "Network Routes" concept starting with openZro v0.35.0. Resources within a Network must be assigned to groups, and access is controlled through policies. Resources only become visible to peers after a policy explicitly grants access.

• Posture check

  A rule that evaluates device state, such as OS version, client version, geographic location, local network range, or running processes. Policies can require one or more posture checks to pass before allowing traffic.

• SIEM (Security Information and Event Management)

  A security platform that collects, analyzes, and stores security events from various sources. Examples include Datadog, AWS Firehose, and S3-based pipelines. SIEMs ingest openZro events (traffic flows, policy changes, authentication events) for visibility, alerting, and compliance reporting.

1.2 Resources and scopes

• Resource

  What you are protecting: applications, APIs, databases, internal services, or entire networks.

• Scope

  A bounded set of users, groups, peers, and resources that belong together operationally. Examples include prod-orders-app, prod-admin-portal, or dev-tooling.

2. Planning phases before you touch openZro

These three phases are the planning work you do before and while you start configuring openZro. They keep the scope small and make later implementation steps predictable.

In this guide, "resources" refers to what you are protecting: applications, services, servers, databases, and the data they contain. This aligns with Zero Trust's focus on protecting resources rather than network segments.

Phase 1: Select initial protected resources

Start with one or two concrete resources, not "our whole network". For example:

• Customer-facing admin portal
• Remote access to internal developer tools
• Access to a critical internal app (web, API, and DB)

For each selected resource, list:

• The users and service accounts that need it
• The devices they use (laptops, jump hosts, CI runners, and so on)
• The systems and services the resource touches

You are not configuring anything yet. You are deciding what to bring under Zero Trust control first and defining what "working as intended" means.

Outcome of Phase 1

• One to two clearly named resource scopes (for example, prod-order-api, prod-admin-portal)
• A simple inventory of who needs access (users, service accounts) and what they access (hosts, services, subnets) per scope
• A named owner for each resource who can confirm whether the rollout broke anything

Phase 2: Map dependencies and communication flows

Next, map how each resource actually works on the wire.

For each resource:

• Which users, groups, or peers need to talk to which resources
• Which protocols and ports are used (for example TCP/443, TCP/5432, SSH, metrics ports)
• Supporting services such as DNS, IdP, logging, metrics, and external APIs
• Background jobs or batch exports that also touch the resource

If you have existing diagrams or runbooks, start there. Then validate with something real:

• Existing firewall rules and security groups
• Application configurations
• Later, openZro Traffic Events and SIEM once peers are enrolled

Most admins do not have perfect flow logs. Treat this as a rough first pass that you will refine using traffic data once openZro is in place. If you lack flow data, interview application owners or review firewall deny logs to fill in the gaps.

Outcome of Phase 2

• A list of users, groups, peers, and resources per scope with their relationships
• A simple diagram or table showing who talks to what, on which port and protocol
• A list of supporting services (DNS, IdP, logging, monitoring) that must remain reachable

Phase 3: Design Zero Trust segmentation policies

Now decide how access should look under a Zero Trust posture.

For each flow identified in Phase 2:

• Is this flow required, or is it legacy or "nice to have"?
• Which side should initiate the connection?
• Which protocol and port are actually required?
• Should the flow be allowed, restricted to a smaller group, or blocked?

Capture this as a simple matrix with users, groups, and peers on one axis, resources on the other, and allowed protocols and ports in each cell.

When you implement this in openZro, you can start slightly more permissive for a short period and use Traffic Events and SIEM to validate your assumptions, then tighten down to the final allow list.

Outcome of Phase 3

• A draft allow list of required flows for each scope
• A list of flows that must be blocked
• A clear picture of which traffic should be one-way versus two-way

The next sections show how to turn these phases into concrete openZro configuration:

• Phase 1 drives IdP integration, groups, and setup keys
• Phase 2 feeds resource modeling, Networks, and routing peers
• Phase 3 becomes access policies, posture checks, and monitoring

3. Integrate identity and onboard peers safely

3.1 Integrate your Identity Provider

Connect openZro to your IdP (Identity Provider, for example Microsoft Entra ID, Google Workspace, Okta) and enable SSO (Single Sign-On) with MFA (Multi-Factor Authentication). This allows users to log in to openZro using their existing corporate credentials instead of separate openZro accounts.

Where to do this: Integrations → Identity Provider Sync.

Map:

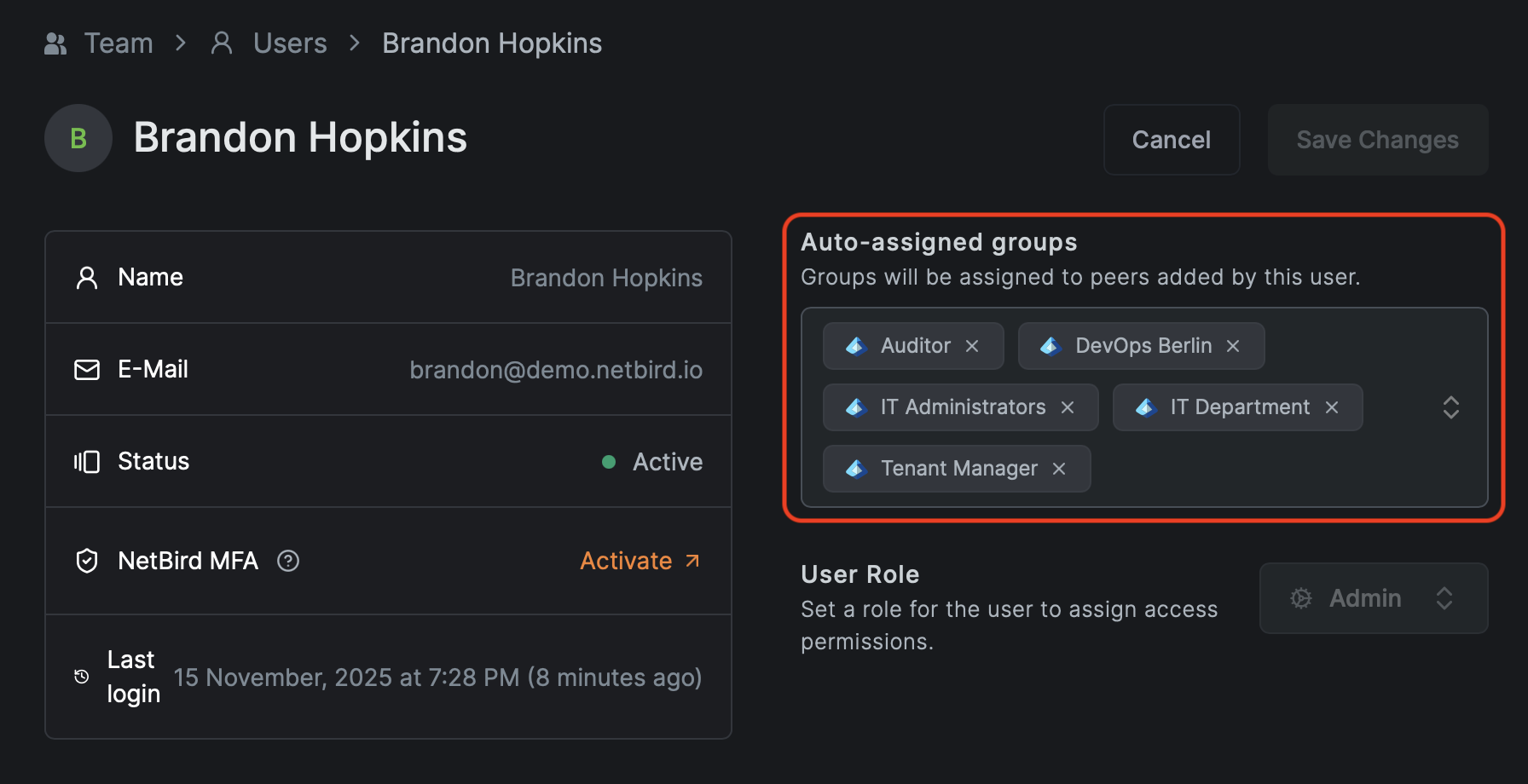

• Your IdP groups (for example DevOps, Support, Finance) to openZro groups where it makes sense
• A small pilot set of users (for example DevOps and the owners of your Phase 1 resources)

Do not expose production Networks yet. At this stage, you only need authenticated identities and a few test peers.

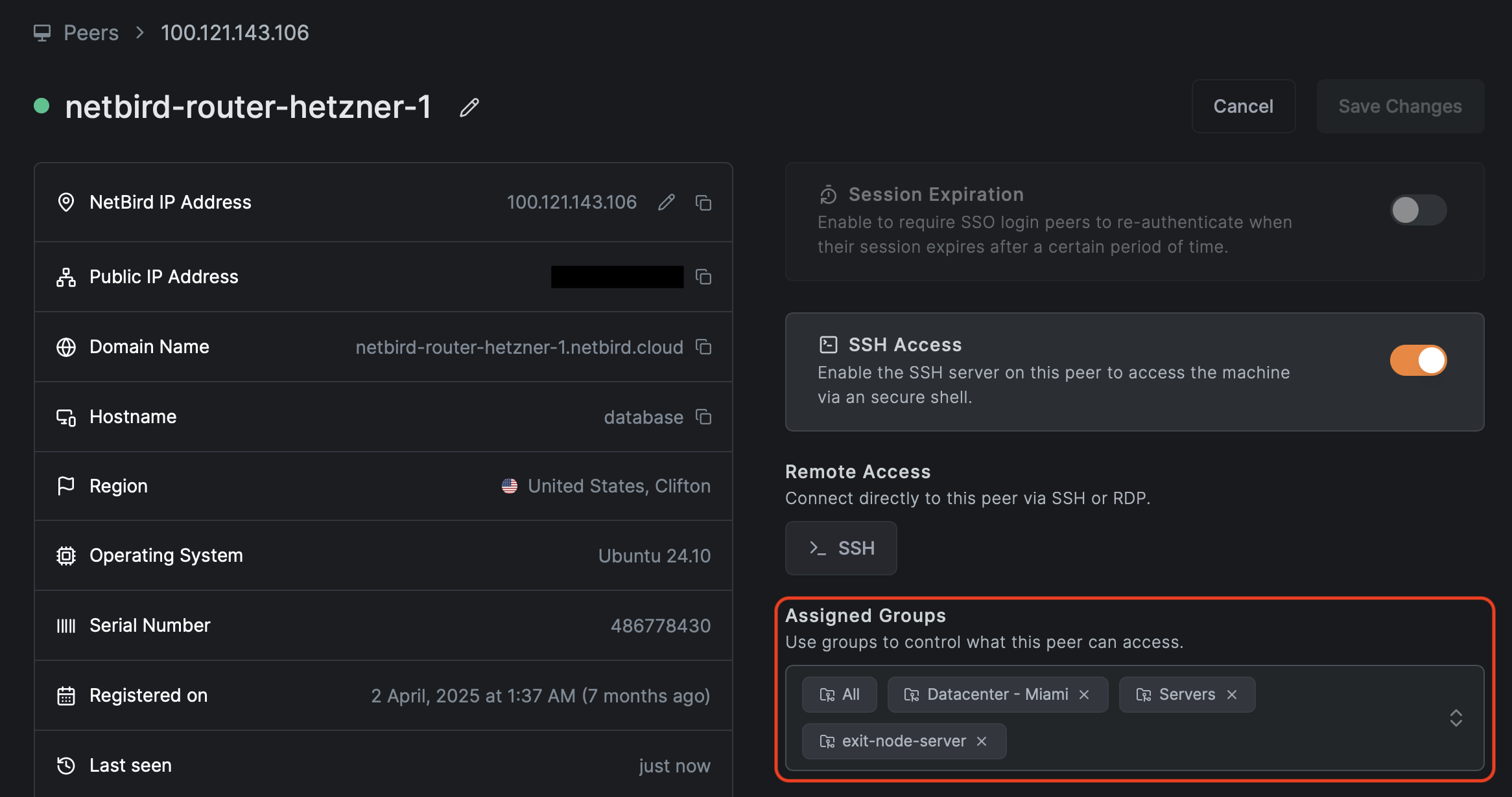

3.2 Groups and naming conventions

Use groups for two things:

• Source groups: who is initiating the connection (users, teams, service accounts)
• Resource groups: what is being accessed (servers, apps, Networks)

Where to manage groups: Access Control → Groups.

Recommended naming:

• peer-<team>-<env> for user devices
  • peer-devops-prod, peer-support, peer-contractors
• svc-<app>-<tier>-<env> for services and hosts
  • svc-orders-web-prod, svc-orders-app-prod, svc-orders-db-prod
• net-<location>-<purpose> for routed Networks
  • net-aws-euc1-prod, net-dc-dc1-lan

Use suffixes for environment:

• dev, stage, prod

The exact scheme is up to you. The important point is to pick a convention and stick with it. Without one, the group and policy list will become unmanageable.

See Appendix A for a quick naming cheat sheet.

3.3 Setup keys for automation and service accounts

Setup keys are used for:

• Routing peers for openZro Networks
• Servers without human login (CI runners, Kubernetes nodes, headless Linux boxes)
• Automated deployment through MDM, RMM, or configuration management tools

Where to manage them: Setup Keys.

Guidelines:

• Create scoped keys per environment:
  • setup-prod-servers that auto-assigns svc-*-prod groups
  • setup-stage-servers that auto-assigns svc-*-stage groups
• Prefer one-off keys for bulk enrollment and delete them after use.
• Restrict who can view or create setup keys.

Rotating setup keys

When staff leaves or you need to rotate a key:

1. Create a new key with the same auto-assign groups.
2. Update scripts and automation to use the new key.
3. Verify new peers join with the expected groups.
4. Revoke or delete the old key.

Rotating keys does not affect existing peers. Rotation only affects new enrollments.

4. Define access policies and posture checks

4.1 Default deny and the starter policy

openZro is deny-by-default. Without policies, peers cannot talk to each other.

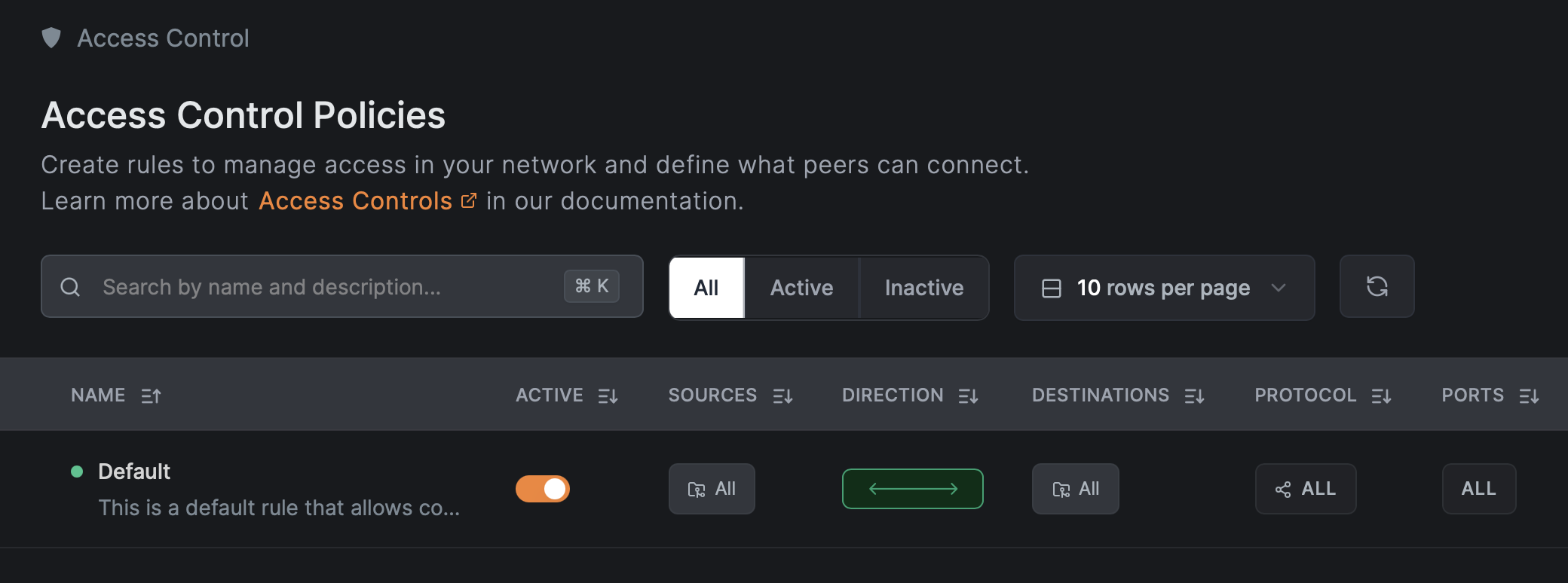

To avoid early confusion, openZro creates a Default policy in new environments that allows every peer to communicate with every other peer on all protocols and ports. This is useful only as a temporary onboarding aid.

Where to see and edit policies: Access Control → Policies.

For a Zero Trust posture:

• Keep the Default policy while you are only enrolling and testing.
• Before going to production, replace it with specific policies and then delete it.

4.2 Posture checks and their limits

openZro posture checks evaluate device state before allowing traffic. They can validate:

• openZro client version
• OS type and version
• Geographic location
• Network CIDR the peer is connected from
• Presence of specific processes

Where to configure them: Access Control → Posture Checks.

Recommended posture checks per policy:

• Client version
  • Enforce minimum openZro version (for example >= 0.45.0) for critical access.
• OS and version
  • Block unsupported or unpatched OS versions on production access.
• Geolocation or peer network range
  • Restrict access to known countries or corporate CIDRs (IP address ranges such as 10.0.0.0/8 or 192.168.1.0/24).
• Process checks
  • Require your EDR (Endpoint Detection and Response) or RMM (Remote Monitoring and Management) agent process to be running before granting access to sensitive resources. This ensures security tools are active on the device.

Example posture combinations:

• Linux production servers
  • OS: Linux, distribution version in a supported list (for example Ubuntu 22.04 or later).
  • openZro client at or above your standard version.
• Admin laptops
  • OS: macOS 13 or later, or Windows 11.
  • Required process: your security agent (for example Jamf or CrowdStrike), using the exact process name from your security team.

Start with client and OS version checks. Add process checks once you can reliably identify the right processes per platform.

4.3 Policy structure

Most application traffic has a clear client and server:

• User device to web frontend
• Web frontend to app backend
• App backend to database
• Monitoring system to metrics endpoints

In openZro:

• Use TCP (Transmission Control Protocol, connection-oriented) or UDP (User Datagram Protocol, connectionless) with exact ports to create unidirectional rules where only the source initiates the connection.
• "All" protocol policies are broad. Limit them to very specific scopes or emergency use.
• Portless rules are effectively "all ports" and should be treated as wide open. These are not recommended for Zero Trust.

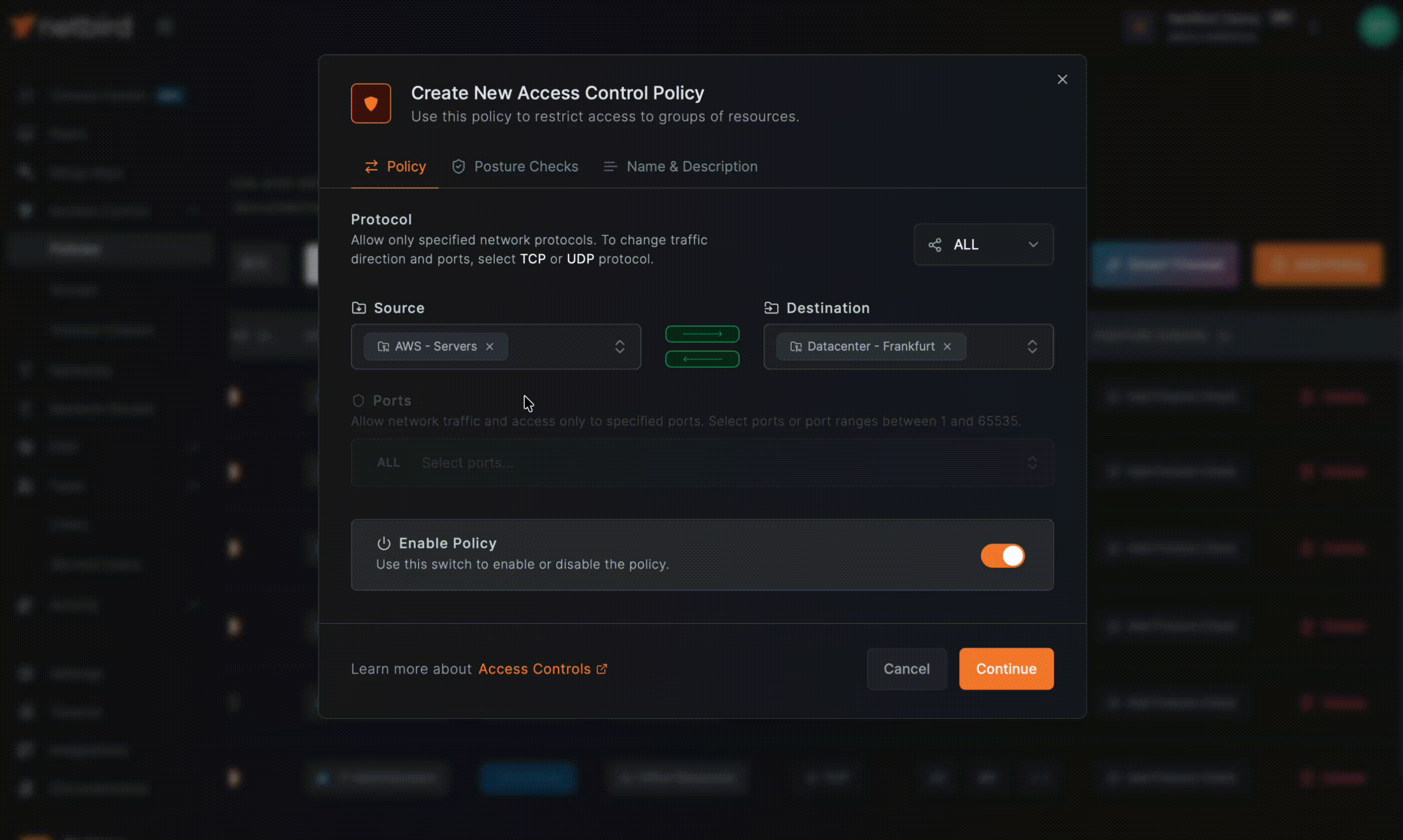

Where to do this: create or edit policies in Access Control → Policies, choose Source group, Destination group, then restrict Protocol and Ports.

This keeps most of your policies simple and least privilege.

4.4 Worked example: Three-tier app

Consider a production orders application with a three-tier architecture (web frontend, application backend, database):

• Web tier: svc-orders-web-prod (port 443 - HTTPS, the secure web protocol)
• App tier: svc-orders-app-prod (port 8443 - typically HTTPS for internal API communication)
• DB tier: svc-orders-db-prod (port 5432 - PostgreSQL database default port)
• DNS: Internal DNS resolvers at IP addresses 10.10.0.10 and 10.10.0.11 (used for name resolution)
• Monitoring: svc-monitoring-prod scraping metrics on ports 9100 (Prometheus) and 9200 (Elasticsearch)

Groups

Source groups:

• peer-devops-prod
• peer-support

Resource groups:

• svc-orders-web-prod
• svc-orders-app-prod
• svc-orders-db-prod
• svc-monitoring
• svc-dns-prod (or a Network resource containing the DNS IPs)

Diagram:

┌─────────────────────────────────────────────────────────────────┐
│  Users                                                          │
│  (peer-devops-prod, peer-support)                               │
└───────────────────────────┬─────────────────────────────────────┘
                            │ TCP/443
                            ▼
┌─────────────────────────────────────────────────────────────────┐
│  svc-orders-web-prod (Web Tier)                                 │
└───────────────────────────┬─────────────────────────────────────┘
                            │ TCP/8443
                            ▼
┌─────────────────────────────────────────────────────────────────┐
│  svc-orders-app-prod (App Tier)                                 │
└───────────────────────────┬─────────────────────────────────────┘
                            │ TCP/5432
                            ▼
┌─────────────────────────────────────────────────────────────────┐
│  svc-orders-db-prod (DB Tier)                                   │
└─────────────────────────────────────────────────────────────────┘

Monitoring (svc-monitoring) ──TCP/9100,9200──► All Tiers
All Peers ──UDP,TCP/53──► Internal DNS (svc-dns-prod)

Policies

1. Users to web
   • Source: peer-devops-prod, peer-support
   • Destination: svc-orders-web-prod
   • Protocol: TCP, Port: 443
2. Web to app
   • Source: svc-orders-web-prod
   • Destination: svc-orders-app-prod
   • Protocol: TCP, Port: 8443
3. App to DB
   • Source: svc-orders-app-prod
   • Destination: svc-orders-db-prod
   • Protocol: TCP, Port: 5432
4. Monitoring
   • Source: svc-monitoring
   • Destination: svc-orders-web-prod, svc-orders-app-prod, svc-orders-db-prod
   • Protocol: TCP, Ports: 9100 and 9200
5. DNS (critical, often forgotten)
   • Source: all peer groups that use this environment (peer-devops-prod, peer-support, svc-*)
   • Destination: svc-dns-prod or a network containing 10.10.0.10/32 and 10.10.0.11/32 (the /32 means a single IP address)
   • Protocol: UDP (primary), TCP (fallback); Port: 53 (standard DNS port)

Example policy configuration (API)

When creating policies via API, the configuration looks like this:

{
  "name": "Users to Web",
  "description": "Allow DevOps and Support to access orders web tier",
  "enabled": true,
  "source_groups": ["peer-devops-prod", "peer-support"],
  "destination_groups": ["svc-orders-web-prod"],
  "protocol": "tcp",
  "ports": ["443"]
}

Deliberately not allowed

• Any peer-* group to the database directly.
• Database initiating connections to app or web tiers.
• Support laptops directly to the DB or app backend.

Critical DNS callout

Broken DNS is the most common cause of "openZro is broken" complaints. For every environment where peers need internal resources or routed Networks, explicitly allow DNS traffic to the correct servers.

5. Connect private networks with routing peers

Use routing peers and Networks when you need to reach private subnets (LAN, VPC, on-premises) rather than only openZro overlay peers.

5.1 Requirements for a routing peer

A routing peer is a openZro peer that:

• Has network access to one or more internal subnets (for example 10.10.0.0/16)
• Is selected as a routing peer in a Network or Network Route configuration

5.2 Direction of traffic with routing peers

openZro Network access policies are unidirectional. They allow traffic from openZro peers toward the routing peer and the routed network. Replies to that traffic work as expected, but new connections cannot originate from the private network toward a openZro peer through the routing peer.

If you need true bidirectional initiation between two endpoints, run openZro on both machines and create an access policy that allows traffic in both directions.

5.3 DNS for routed networks

Routed environments almost always rely on internal DNS (Domain Name System), which translates human-readable names like db.internal.example.com to IP addresses like 10.10.1.5. If peers can reach the IP range 10.10.0.0/16 but cannot resolve hostnames like db.internal.example.com, applications will fail because they typically use hostnames rather than IP addresses.

With Networks and domain resources, openZro can route both IP ranges (like 10.10.0.0/16) and DNS-based resources (like *.corp.internal), and can forward DNS lookups through the routing peer.

General rules:

• Create a Network that includes:
  • IP ranges (for example 10.10.0.0/16 - the /16 means the first 16 bits are the network portion, allowing 65,536 IP addresses)
  • DNS resources (for example db.internal.example.com for a specific hostname, or *.corp.internal for all subdomains) where appropriate
• Add a DNS server in openZro with the right match domain (for example corp.internal) under DNS → Nameservers.
• Add explicit policies allowing peers to reach the DNS servers themselves (UDP and TCP 53 to the resolver IPs).

6. High availability, masquerading, and scaling considerations

6.1 High availability for routing peers

You can assign multiple routing peers to the same Network or route to provide high availability. Clients will choose among them.

Selection is based on route priority (metric). The rules are:

• Each routing peer for a Network has a metric. Lower metrics are preferred, so the routing peer with the lowest metric handles traffic.
• If multiple routing peers share the same metric, the client prefers the routing peer with lower latency.

Practical recommendations:

• Use explicit priorities:
  • Same region routing peer: metric 100
  • Backup or cross-region routing peer: metric 200
• For critical Networks, run at least two routing peers in separate failure domains (different zones, racks, or hosts).
• Monitor routing peers with your existing monitoring plus openZro events. If one fails, verify that clients start using the other peers.
• Verify HA behavior by simulating a failure and checking route selection with openzro status -d and test traffic.

The same pattern applies to exit nodes that provide default routes for internet-bound traffic.

See Appendix B for a quick HA checklist.

6.2 Masquerading versus return routes

Masquerading (also called NAT masquerading or source NAT) controls how routed traffic appears to internal networks. When enabled, openZro rewrites the source IP address of traffic so it appears to come from the routing peer's internal IP address instead of the original openZro overlay IP.

With masquerading enabled, internal systems see traffic as coming from the routing peer's internal IP:

• Internal firewall log:
  • 10.10.0.5 → 10.10.1.10:5432

This usually works out of the box because internal firewalls already trust the routing peer's subnet. openZro enables masquerading by default.

With masquerading disabled, internal systems see the original openZro overlay IP:

• Internal firewall log:
  • 100.64.1.45 → 10.10.1.10:5432
  • where 100.64.1.45 is a openZro overlay address (always within 100.64.0.0/10)

To make non-masqueraded traffic work you must:

1. Add a route for the overlay range in your internal router or firewall, pointing to the routing peer's internal IP.
2. Allow that traffic in internal firewall rules.

Examples for non-masquerade mode:

• Linux router:

  # Add a route: send all traffic destined for 100.64.0.0/10
  # through the gateway at 10.10.0.5 (the routing peer's internal IP)
  ip route add 100.64.0.0/10 via 10.10.0.5


  CopyCopied!

• AWS VPC route table:

  • Destination: 100.64.0.0/10 (the openZro overlay range)
  • Target: ENI (Elastic Network Interface) of the routing peer instance (the network interface attached to your EC2 instance running the routing peer)

Q1: Do you control the internal network router?

• No -> Must use Masquerading.
• Yes -> Q2: Do you need to see the actual user IP in app logs?
  • No -> Use Masquerading.
  • Yes -> Disable Masquerading + Add Return Routes.

Health checks and load balancers

If internal systems initiate traffic toward openZro peers (health checks, callbacks), you must:

• Enable masquerading so return traffic is seen as coming from the routing peer, and
• Add a peer access policy from the routing peer group to the target peer group for the relevant ports

If you need real client IP visibility for logging while passing traffic through openZro, keep masquerading disabled and rely on overlay IPs plus the route and firewall configuration above. If your compliance standards require logging the original source IP of the user, you must disable masquerading and configure return routes. If you are unsure, leave masquerading enabled.

6.3 Scaling and route selection

At larger scale, you will care about:

• Overlapping routes to different environments (for example, multiple 172.17.0.0/16 networks)
• Connection overhead for many peers

openZro has route selection tools and an experimental lazy connections feature for large networks. In practice:

• Use network/route selection to avoid accidental routing into the wrong VPC or site when CIDRs overlap. You can do this in the systray application or via the command line.
• Lazy connections reduce CPU and battery usage on devices by establishing tunnels only when traffic is sent, rather than maintaining keep-alive with every peer in the mesh. Note that lazy connections is an experimental feature that requires openZro client version 0.50.1 or later and does NOT support accessing resources through routing peers (Networks). Review the current scaling guidance and lazy connections documentation before rolling out to thousands of peers.

7. Visibility: Traffic Events, SIEM, and Control Center

7.1 Enable Traffic Events and streaming early

Enable these as soon as possible, ideally right after IdP integration:

• Traffic Events in the openZro dashboard
• Activity event streaming to your SIEM or log platform

Where to configure: Activity → Traffic Events & Integrations → Event Streaming

Use them to:

• Discover real flows to and from your pilot resources
• Verify that new policies are actually used
• Detect blocked legitimate traffic after policy changes

7.2 Use the SIEM for discovery and verification

For each new Zero Trust scope:

1. Create a temporary broad policy from the relevant source group to the target resource or Network.
2. Run for 48 to 72 hours during normal use.
3. In the SIEM:
   • Filter by source group, destination group, and resource.
   • Extract the actual ports and protocols used.
4. Replace the broad policy with specific allow rules for those ports.
5. Keep monitoring for new blocked flows.

This turns "guessing the flows" into a data-driven process.

7.3 Control Center for topology and policy review

openZro's Control Center provides a topological view of who can reach what, based on policies, groups, and Networks. Access control policies can be edited directly from the Control Center.

Where to access: Control Center in the dashboard.

Use it for:

• Peers view
  • Select a peer and see which resources it can reach and through which policies.
• Users view
  • Select a user and see all their peers and which resources they can access through which policies.

• Groups view
  • Select a group and see which resources its members can reach and through which policies.

• Network view
  • Select a Network and see which groups have access and on which ports.
• Large organizations
  • Quickly spot redundant policies, overly broad access, and missing segmentation.

This is the right tool for periodic Zero Trust reviews and debugging complex access issues.

8. Rollout strategy, rollback, and operations

8.1 Progressive rollout

Do not start with production.

For each pattern:

1. Apply it to dev first:
   • Use the same group and policy structure (peer-devops-dev → svc-orders-web-dev, etc.).
2. Mirror to staging, refine there, then apply to prod.
3. Keep group and policy names aligned across environments, only changing the dev, stage, prod suffix.

This keeps cognitive load low and reduces surprises in production.

8.2 Rollback plan

When you move from broad access to strict Zero Trust, have an explicit rollback plan.

• Maintain one "break glass" access method (for example, a physical console or a separate VPN/bastion) that does not rely on openZro during the initial setup phase.

• Keep a known good emergency broad policy, for example:

  peer-devops-prod → net-aws-euc1-prod [ALL] but keep it disabled.

• If production breaks and you cannot immediately identify the cause:

  1. Temporarily enable the emergency policy.
  2. Confirm that service has recovered.
  3. Investigate using Traffic Events, Control Center, and SIEM.
  4. Replace the emergency policy with a precise fix and disable it again.

• Test the rollback once before you go live.

If someone deletes the Default all-to-all policy without a proper replacement, everything will stop. In that case:

• Quickly create a broad but scoped policy per critical environment.
• Tighten policies once things are stable.

8.3 Ongoing maintenance

To keep the system healthy over time:

• Enforce group and policy naming consistently.

  • Example policy name pattern:

    peer-devops-prod → svc-orders-db-prod [TCP/5432]

• Use policy descriptions to record the business justification and owner:

  • "Orders app backend to DB, owned by App Team X"

• Periodically review:

  • Unused groups
  • Redundant policies
  • Peers that have not connected recently

• Keep an eye on:

  • openZro client versions (enforce minimum via posture checks)
  • Routing peers' capacity and health

9. Common failure modes and quick checks

This section provides practical checks and commands you can run on peers.

9.1 "Policy exists but connection is still blocked"

Most often:

• Posture check failing:
  • Device OS or openZro version does not meet the policy requirement.
  • Required process (EDR, RMM) is not running.
• Group mismatch:
  • The peer is not in the group you think it is (IdP group not synced, wrong setup key, manual group changes).

What to do:

• Check the policy and its posture checks in Access Control → Policies.
• Confirm the peer's group membership in the dashboard under Peers.
• Look at Traffic Events for explicit "blocked due to posture" or "no matching policy" entries.

Useful commands on the peer:

# Check openZro status
openzro status -d

9.2 "Connection works sometimes"

Common causes:

• Routing peer flapping:
  • One of several routing peers is unhealthy, and clients sometimes pick the bad one.
• Overlapping routes:
  • Two Network routes share the same CIDR, and the client sometimes picks the wrong one.
• Unstable underlying network:
  • Wireless or mobile networks dropping connectivity.

What to do:

• Check routing peers' health and logs.

• Use network listing and selection on the client to see which routes are active:

  # Networks (v0.35.0+) - recommended for Zero Trust
  openzro networks ls

  # Legacy Network Routes
  openzro routes ls


  CopyCopied!

• Temporarily deselect problematic routes and see if the issue disappears.

  # For Networks
  openzro networks deselect "network_name"
  openzro networks select "network_name"

  # For legacy routes
  openzro routes deselect "route_id"
  openzro routes select "route_id"


  CopyCopied!

9.3 "After deleting the Default policy, nothing works"

Cause:

• No replacement policies exist yet, and openZro's deny-by-default behavior is kicking in.

Fix:

• Create a broad but scoped policy:
  • For example peer-devops-prod → svc-orders-* with required ports.
• Test that critical access works.
• Only then delete the Default policy and tighten further.

9.4 DNS resolution failures

Symptoms:

• Peers can ping IPs but cannot resolve hostnames.
• Applications complain about hostnames not found.

Likely causes:

• No policy allows traffic to internal DNS servers (UDP and TCP 53).
• DNS match domains for routed Networks are not configured correctly.
• DNS forwarder ports are blocked on or behind the routing peer.

Fix:

• Add explicit DNS policies:

  • Source: relevant peer groups
  • Destination: DNS resolvers or DNS Networks
  • Ports: UDP and TCP 53

• Verify DNS routing configuration in Networks and match domains.

• From a client, run DNS lookup commands and compare behavior with your expectations:

  # nslookup: Basic DNS lookup tool (works on Windows, Linux, macOS)
  nslookup db.internal.example.com

  # dig: More detailed DNS query tool (Linux/macOS, or install on Windows)
  # The @10.10.0.10 specifies which DNS server to query
  dig @10.10.0.10 db.internal.example.com


  CopyCopied!

• Linux: resolvectl status (systemd-resolved command to see if the openZro interface has the right DNS domains configured)

• Windows: Get-DnsClientNrptPolicy (PowerShell command to see if Name Resolution Policy Table rules are active; these tell Windows which DNS server to use for specific domains)

For more detailed DNS troubleshooting steps, see the DNS Troubleshooting guide.

10. Best practices: Dashboard settings

These dashboard settings strengthen your Zero Trust security posture by adding layers of access control and authentication verification.

10.1 Authentication settings

Configure these settings to strengthen peer and user verification.

Where to configure: Settings → Authentication in the openZro dashboard.

• Manual peer approval

  Require administrator approval before new peers can join the network. This prevents unauthorized devices from automatically connecting and gives you control over which devices gain access.

• User approval

  Require administrator approval for new user accounts before they can access openZro. This ensures only authorized personnel can enroll devices and access resources.

• Peer session expiration (24 hours or lower)

  Configure peer sessions to expire after 24 hours or less, requiring users to re-authenticate regularly. This limits the window of opportunity if credentials are compromised and ensures access is periodically re-verified.

• Global MFA (if your IdP does not enforce it)

  Enable Multi-Factor Authentication at the openZro level if your Identity Provider does not enforce MFA. This adds a second authentication factor to protect against credential theft and unauthorized access.

10.2 Permission settings

Configure these settings to restrict dashboard access.

Where to configure: Settings → Permissions in the openZro dashboard.

• Restrict dashboard for regular users

  Limit dashboard access to administrators only, preventing regular users from viewing or modifying network configurations, policies, and peer information. This follows the principle of least privilege and reduces the risk of accidental or malicious configuration changes.

Appendix A: Naming and object cheat sheet

Peers

• peer-<team>-<env>
  • peer-devops-dev
  • peer-devops-prod
  • peer-support-prod

Services

• svc-<app>-<tier>-<env>
  • svc-orders-web-prod
  • svc-orders-app-prod
  • svc-orders-db-prod

Networks

• net-<provider/location>-<region/site>-<env>
  • net-aws-euc1-prod
  • net-dc-dc1-lan

Policies

• <source-group> → <dest-group> [<protocol>/<port or range>]
  • peer-devops-prod → svc-orders-web-prod [TCP/443]
  • svc-orders-app-prod → svc-orders-db-prod [TCP/5432]

DNS names

• <resource>.internal or <service>.corp

Setup keys

• setup-<env>-<purpose>
  • setup-prod-servers
  • setup-stage-servers

Appendix B: Quick reference and commands

B.1 Common CLI commands

# Check detailed status
openzro status -d

# Networks (v0.35.0+) - the newer feature with policy-based access control
openzro networks ls

# Legacy Network Routes - may bypass Access Control unless explicitly configured
openzro routes ls

B.2 High availability for routing peers

• At least two routing peers per critical openZro Network.
• Different failure domains (AZs, racks, hosts).
• Primary metric 100, backup metric 200.
• Monitor both openZro health and OS-level metrics.
