pfSense Installation

pfSense ships a NetBird package maintained by Netgate (the pfSense vendor) that includes both the agent and the firewall UI integration. openZro is wire-compatible with that client because we forked NetBird at v0.52.2, the last permissively-licensed release before the upstream's AGPL relicense — and the agent ↔ management protocol hasn't broken across versions.

So the workflow is: install the upstream pfSense-pkg-NetBird from netbirdio/pfsense-netbird, then point the Management URL field at your openZro management server. No openZro-specific build needed.

The packages on the upstream release page are signed by Netgate. The agent binary is licensed AGPLv3 (NetBird's current license); the pfSense plugin itself is Apache 2.0. You're an end-user consuming both — neither license affects your use of openZro.

Prerequisites

  • Shell/SSH access to pfSense (via Web UI shell or remote SSH)
  • A setup key to authenticate and register the pfSense device
  • The latest two .pkg files from netbirdio/pfsense-netbird/releases — one for the agent (netbird-<version>-<arch>.pkg) and one for the UI plugin (pfSense-pkg-NetBird-<version>-<arch>.pkg)

Installation

  1. SSH into your pfSense system

    ssh admin@<pfsense-ip>

    If remote SSH is enabled, or use the built-in shell via the pfSense Web UI (Diagnostics > Command Prompt).

  2. Download the agent

    fetch https://github.com/netbirdio/pfsense-netbird/releases/latest/download/netbird-<version>-<arch>.pkg

    Replace <version> and <arch> with the values from the latest release. Most pfSense installations are x86_64; appliances on ARM use aarch64.

  3. Download the pfSense plugin

    fetch https://github.com/netbirdio/pfsense-netbird/releases/latest/download/pfSense-pkg-NetBird-<version>-<arch>.pkg

  4. Install both packages

    pkg add -f netbird-<version>-<arch>.pkg
pkg add -f pfSense-pkg-NetBird-<version>-<arch>.pkg

  5. Verify the installation

    The NetBird configuration UI should now appear under VPN > NetBird in the pfSense menu. The label says NetBird because that's the upstream package name — point it at openZro in the next step.

Configuration

Authenticate the machine

In VPN > NetBird, fill out the authentication form:

  • Management URL: enter your openZro management server, e.g. https://your-management.example.com:443. Do not leave the default — that points at the upstream NetBird managed cloud.
  • Setup Key: paste a setup key issued from your openZro dashboard.

Click Save.

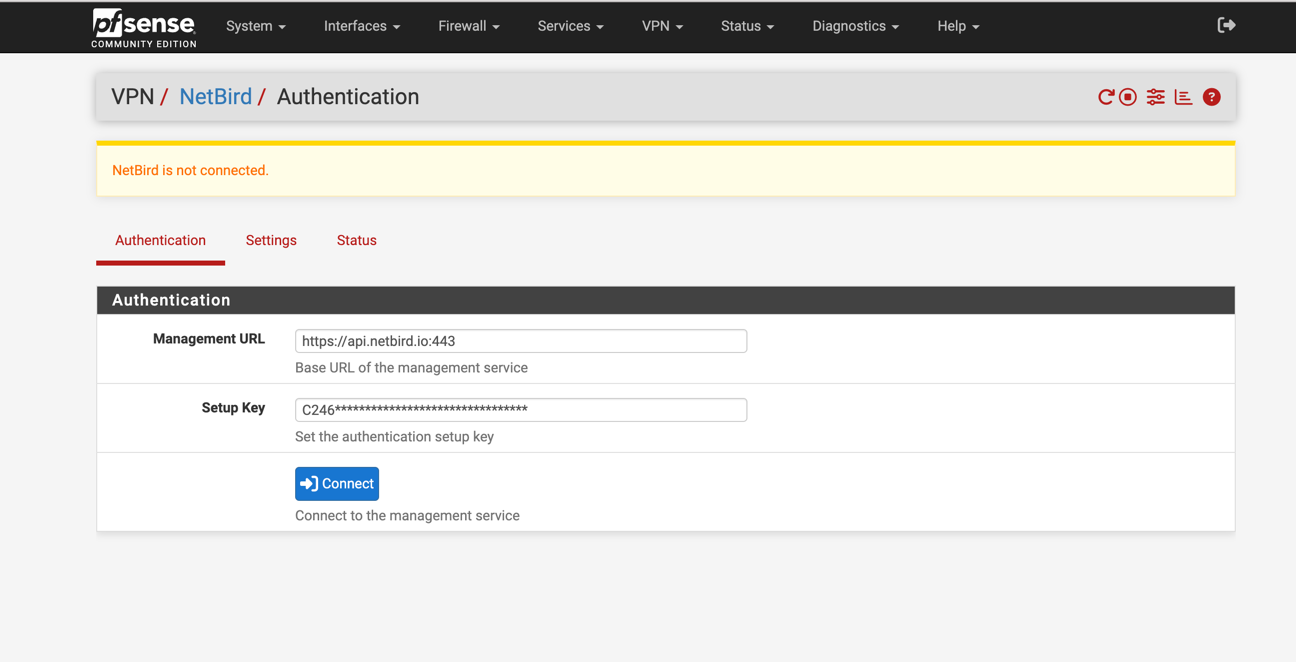

authentication

Verify connection status

The Status page shows connected peers and control-service health. Open it via Status > NetBird in the pfSense menu.

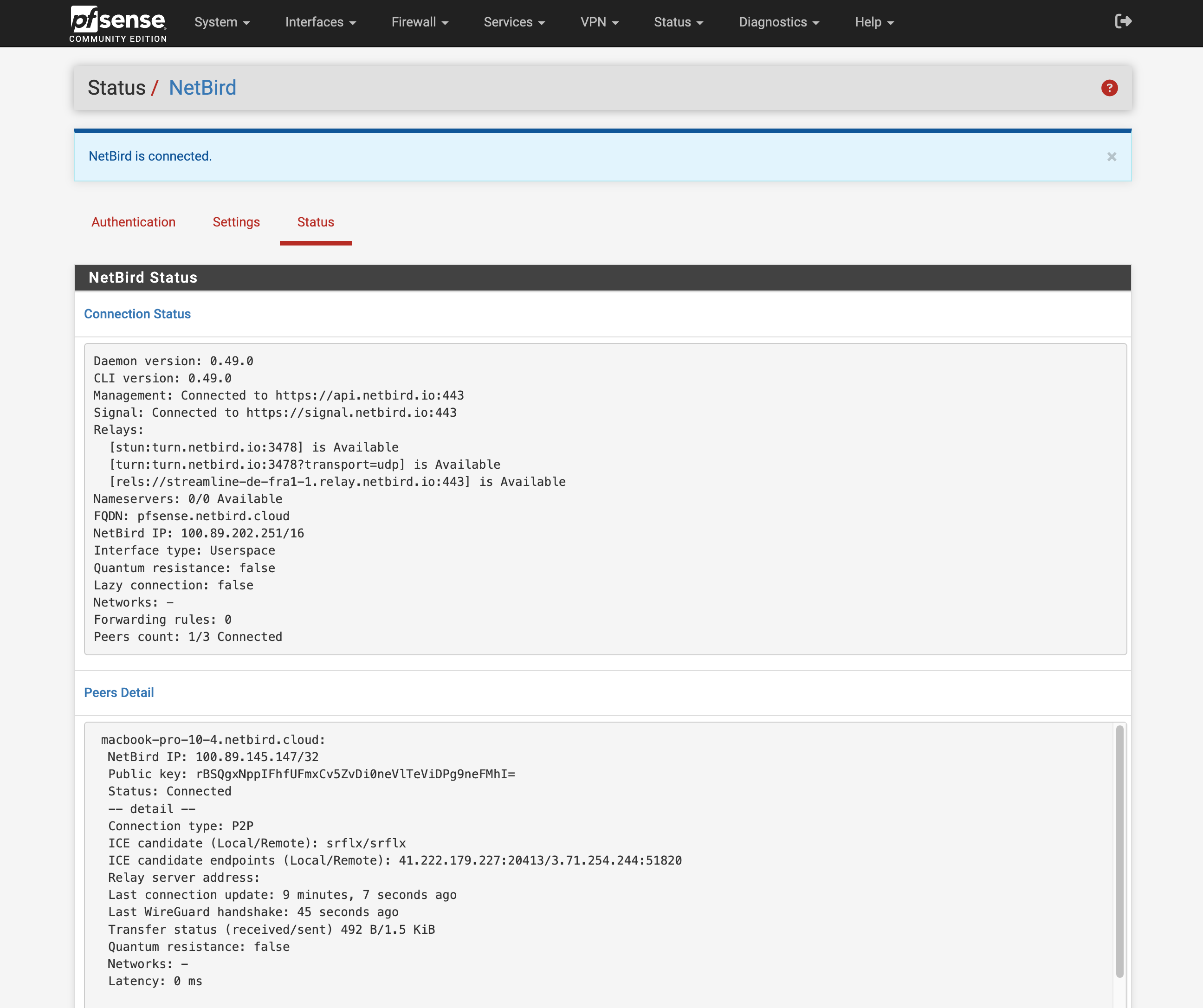

connection status

Assign the WireGuard interface

After authentication, a new interface named wt0 will be available but unassigned. Assign it via Interfaces > Assignments. Under Available network ports, select wt0(wt0) and click Add.

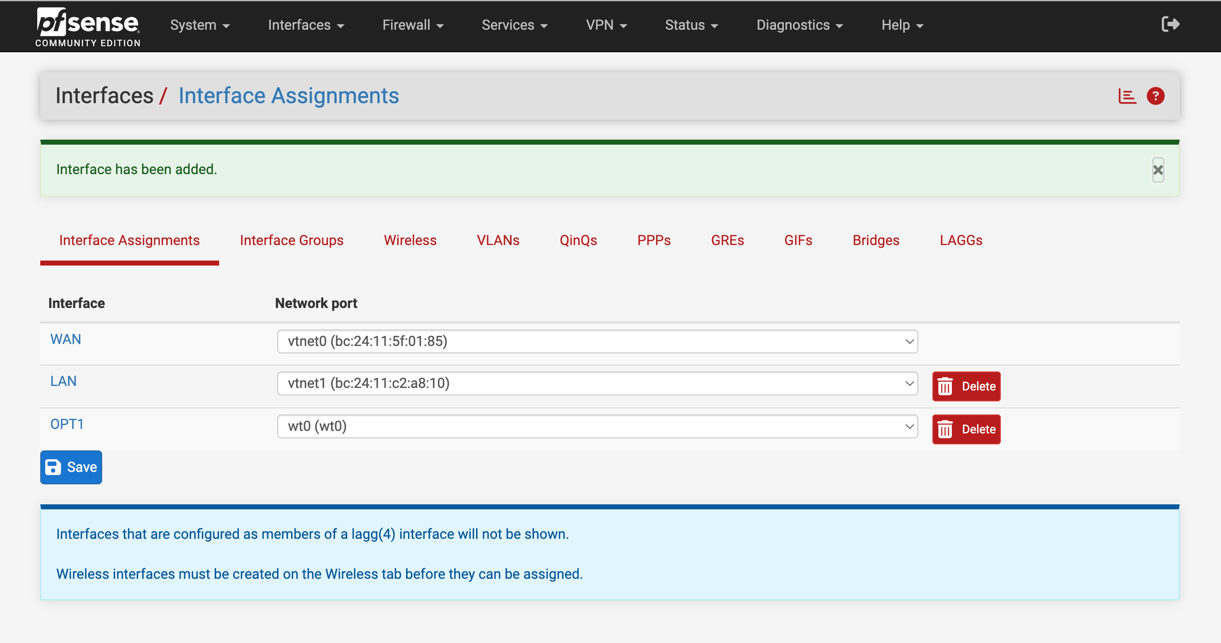

NewInterface

Enable the interface

Go to Interfaces > OPT1 (or whatever name pfSense gave the new assignment), then:

  • Enable: ✓ Enable Interface
  • Description: openZro

Click Save, then Apply changes.

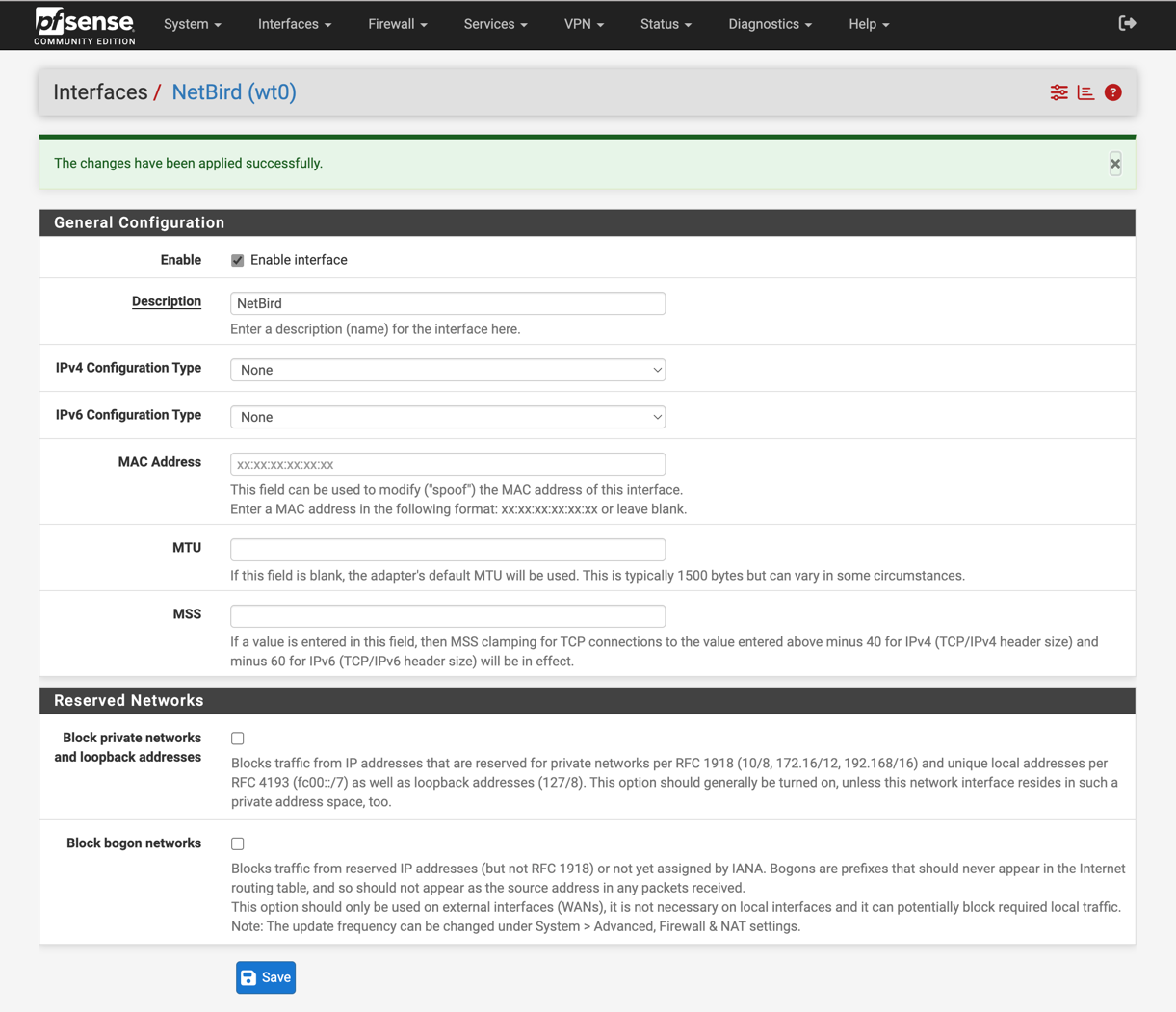

enableInterface

Configure firewall rules

Permit all traffic on the openZro interface in pfSense — openZro's own access policies (ACLs) handle the access control. Create rules under Firewall > Rules on the new interface tab:

  1. Click Add to create the rule
  2. Configure:
    • Action: Pass
    • Interface: OPENZRO (the description you set above, in caps)
    • Address Family: IPv4
    • Protocol: Any
    • Source: Any
    • Destination: Any
    • Description: Allow all on openZro (managed by openZro ACLs)
  3. Click Save, then Apply Changes

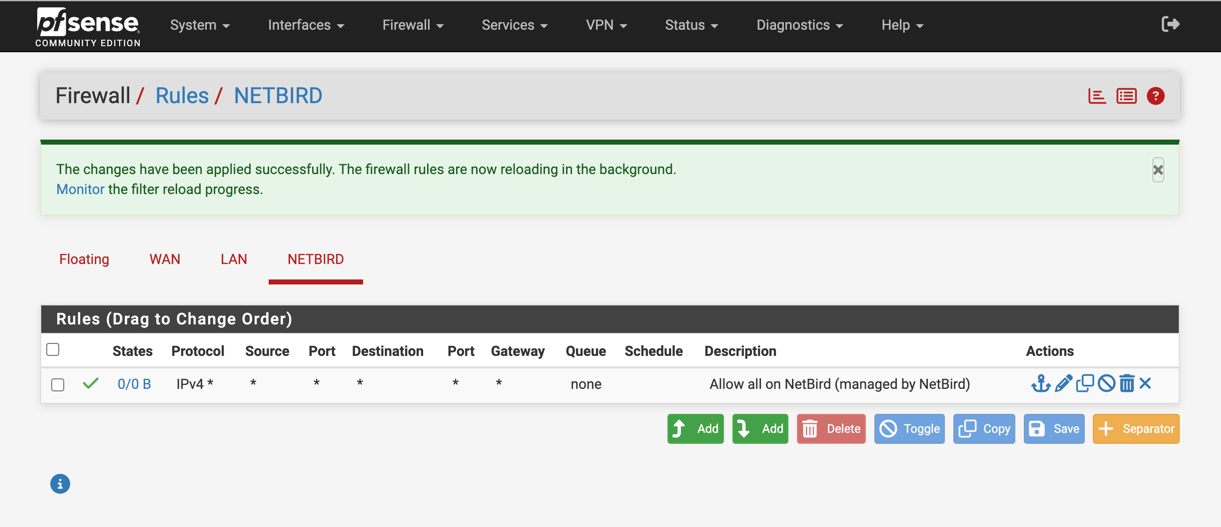

firewallRules

Static port for relayed connections

By default, pfSense's automatic outbound NAT randomizes source ports, which can break openZro's NAT traversal (hole punching). Add a Static Port mapping for the openZro host so direct connections work reliably:

  1. Switch outbound NAT mode:

    • Firewall > NAT > Outbound
    • Select Hybrid Outbound NAT rule generation, click Save

  2. Add a static-port rule:

    • Click Add (Up arrow) to create a new rule at the top
    • Interface: WAN
    • Address Family: IPv4
    • Protocol: UDP
    • Source: Network — IP of the openZro host
    • Destination: Any
    • Translation / Static Port: ✓ check
    • Description: openZro Static Port
    • Click Save and Apply Changes

  3. Reset existing states so the new rule takes effect for in-flight connections:

    • Diagnostics > States
    • Filter by the openZro host IP, click Kill

  4. Restart the agent:

    • netbird service restart on the device
    • netbird status -d to verify

Uninstallation

pkg delete netbird pfSense-pkg-NetBird
